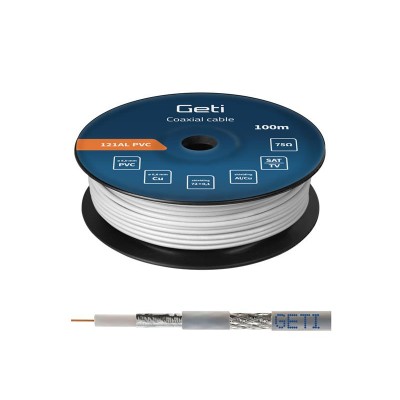

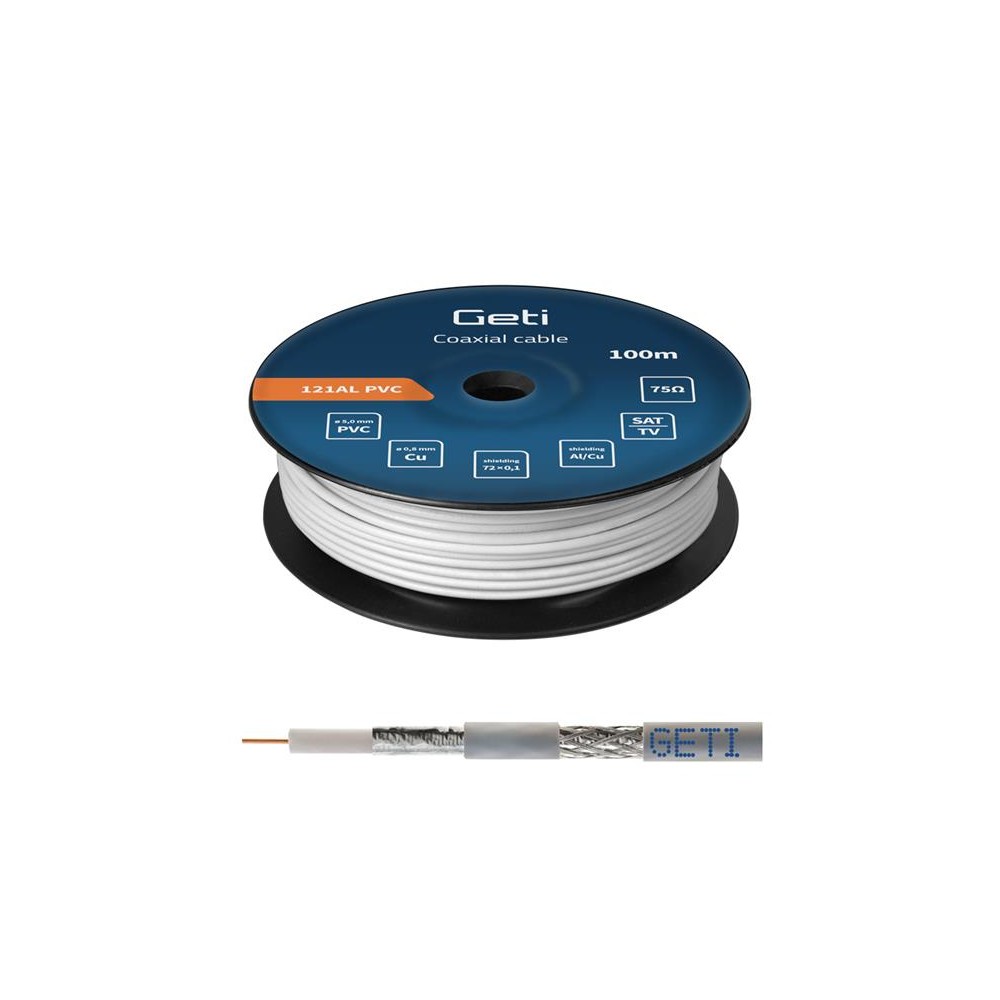

Coaxial cable GETI 121AL PVC (100m reel)

High quality coaxial cable with bare copper core, used in cabled distribution networks.


Technical parameters:

- inner conductor: pure copper, ø 0.80mm ± 0.01
- first screen: overlapped Cu foil: ø 3.62mm ± 0.05
- second screen: tinned copper, 72 x 0,10 mm
- braid diameter: 4,02mm ± 0,05
- dielectric: ø 3,50mm ± 0,05
- sheath: PVC white, ø 5,0mm ± 0,10
- nominal impedance: 75 Ω ± 3
- capacity: 53 pF / km ± 2
- maximum voltage: 2kV
- return loss:> 20 dB (5-2500 MHz)
- minimum static bend radius: 25mm
- velocity ratio: 84% (+/-2)
- operating temperature: -30 ℃ + 60 ℃
- storage temperature: -30 ℃ + 70 ℃
- packaging: 100 m reel = 1pc
- packing quantity: 2pcs carton box


Attenuation MHz / dB / 100 m:

- 5MHz - 1.7dB
- 50MHz - 5.6dB
- 100MHz - 7.7dB
- 200MHz - 10.9dB
- 400MHz - 15.8dB
- 600MHz - 19.6dB
- 800MHz - 22.6dB
- 1000MHz - 25.1dB
- 1350MHz - 29.2dB
- 1600MHz - 32.6dB
- 1750MHz - 34.8dB
- 2150MHz - 37.8dB
- 2400MHz - 40.9dB
