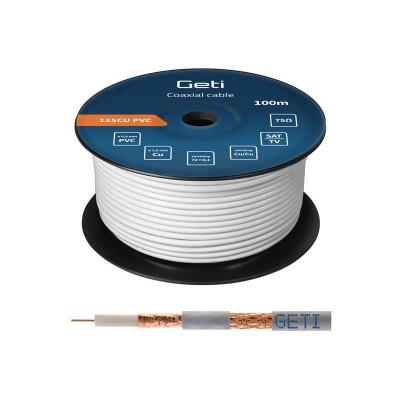

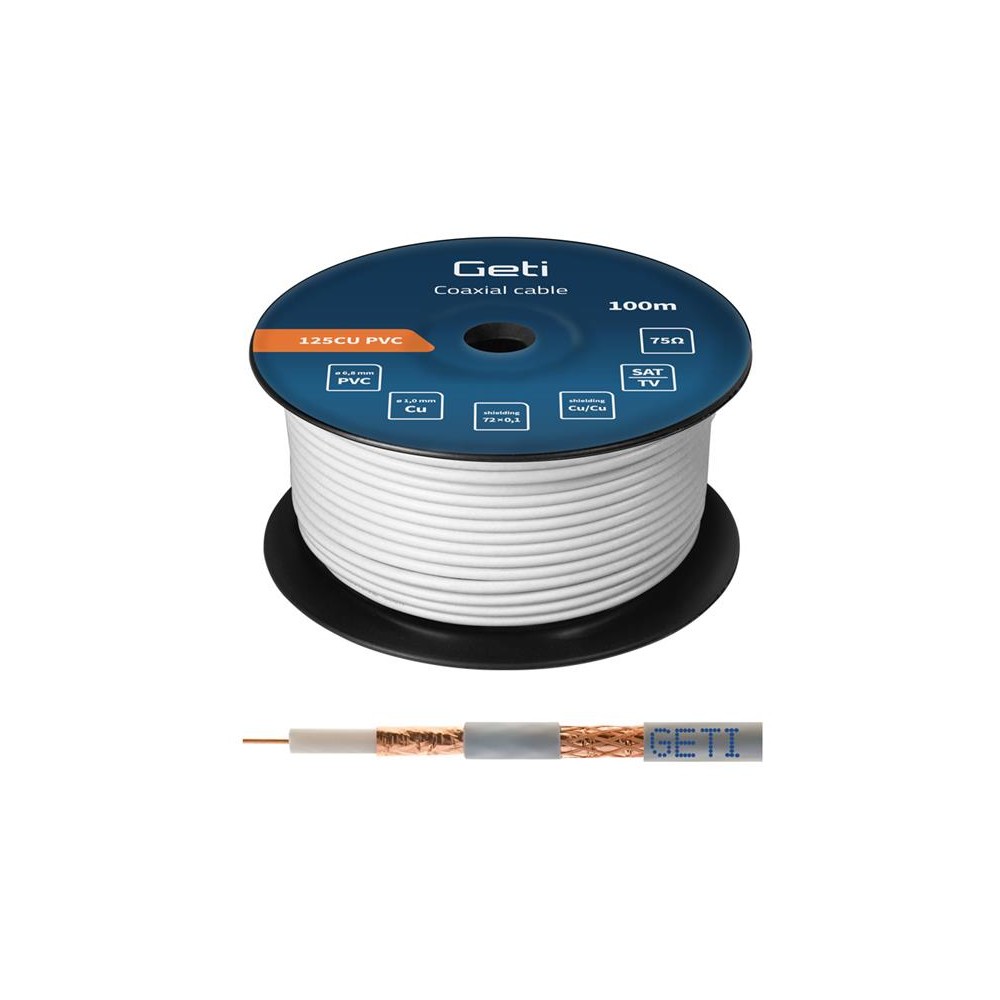

Coaxial cable GETI 125CU PVC (100m reel)

High quality coaxial cable with bare copper core, used in cabled distribution networks.


Technical parameters:

- inner conductor: pure copper, ø 1,00mm ± 0,01
- first screen: overlapped Cu foil: ø 4,87mm ± 0,05
- second screen: bare copper, 72 x 0,10 mm
- braid diameter: 5,27mm ± 0,05
- dielectric: ø 4,80mm ± 0,05
- sheath: PVC white, ø 6,8mm ± 0,10
- nominal impedance: 75 Ω ± 3
- capacity: 55 pF / km ± 2
- maximum voltage: 2kV
- return loss:> 20 dB (5-2500 MHz)
- minimum static bend radius: 70mm
- velocity ratio: 81% (+/-2)
- operating temperature: -30 ℃ + 60 ℃
- storage temperature: -30 ℃ + 70 ℃
- packaging: 100 m reel = 1pc
- packing quantity: 2pcs carton box


Attenuation MHz / dB / 100 m:

- 5MHz - 1.4dB
- 50MHz - 4.3dB
- 100MHz - 6.0dB
- 200MHz - 8.3dB
- 400MHz - 12.0dB
- 600MHz - 14.8dB
- 800MHz - 17.3dB
- 1000MHz - 19.6dB
- 1350MHz - 22.6dB
- 1750MHz - 26.0dB
- 2150MHz - 29.3dB
- 2400MHz - 31.3dB
