Wire SOLARIX UTP CAT5E 1m
2,99 €
Brutto
50 Przedmioty
TP-03670015-EU
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas pristatymas užsakymams nuo 59€.
Suteikiame 14 dienų pinigų grąžinio garantiją

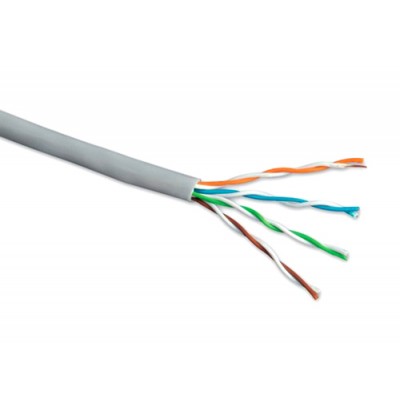

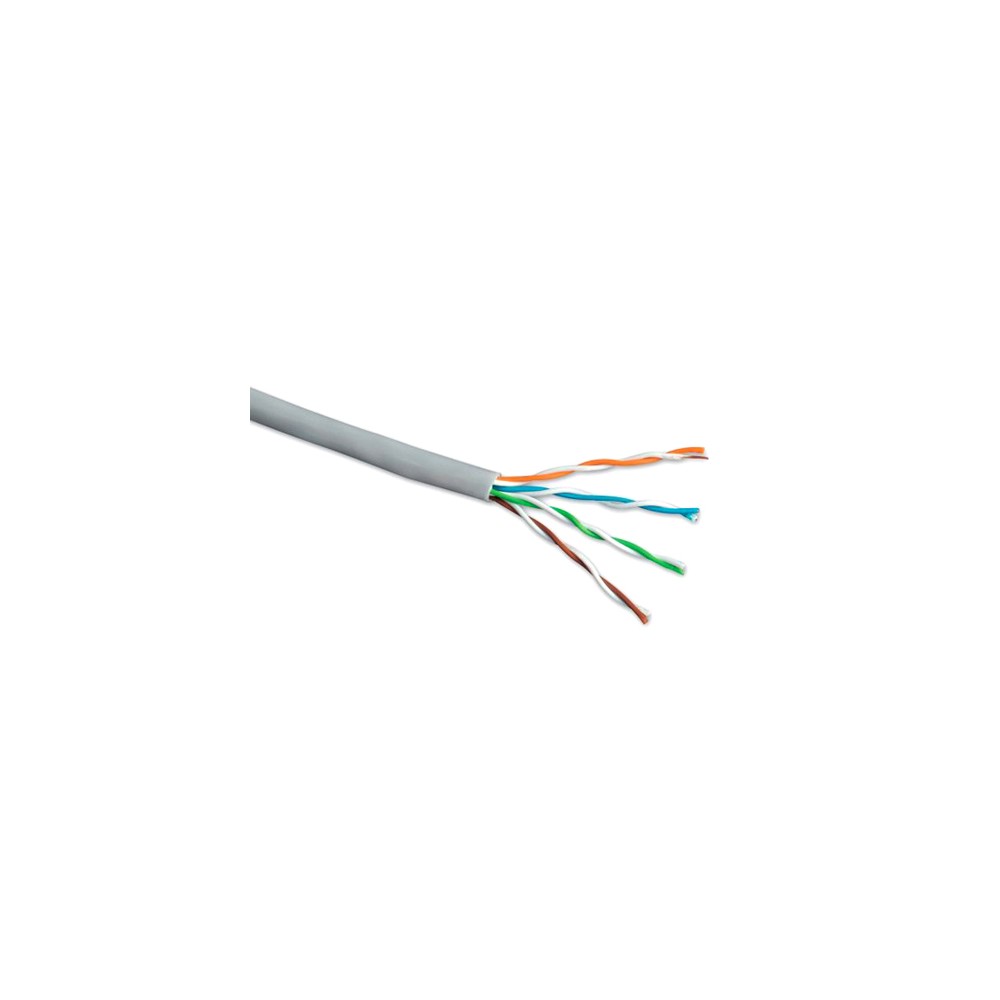

Wire SOLARIX UTP CAT5E 1m
This installation cable, designated SXKD-5E-UTP-PVC, is a reliable part of the Solarix product line - Category 5E. Together with other components of the structured cabling system, Solarix creates a solution that ensures long service life, maximum performance and seamless operation of the computer network. Solarix installation cables - category 5E are designed for horizontal wiring and are offered in shielded or unshielded versions with different types of casing - PVC (Eca reaction class), LSOH (Eca reaction class) or UV stable PE (reaction class to the Fca fire). These cables meet the requirements defined in International Standards ANSI / TIA 568, ISO / IEC 11801 and EN 50173 for Category 5E and Class D Class Leads, including all the latest additions. Like all other Solarix cables, the SXKD-5E-UTP-PVC cable is marked with 1 m of wire lengths from 0 to 305 m. The cable is supplied in a highly durable three-layer polished cardboard box (always color-coded according to the type of cable) provide all necessary product information, including barcodes, production batch, description and the most important technical parameters.
Properties:
- Category: CAT5E
- Supported protocols: 1000BaseT
- Shielding: no
- Bandwidth: 100 MHz
- Wire type and size: Copper wire 0, 50 mm
- Isolation and conductor diameter with insulation: polyethylene 0,88 mm
- Class of reaction to fire, type of sheath: Eca, PVC
- Coat color: gray RAL 7035
- Cable diameter: 5,0 mm
- Weight: 31 kg / km
- NRC: 68%
- Propagation delay: 535 ns / 100 m
- Delay skew: ≤45 ns / 100 m
- Storage temperature: -20 ° C to 60 ° C
- Operating temperature: -20 ° C to 60 ° C
- Installation temperature: 0 ° C to 50 ° C
