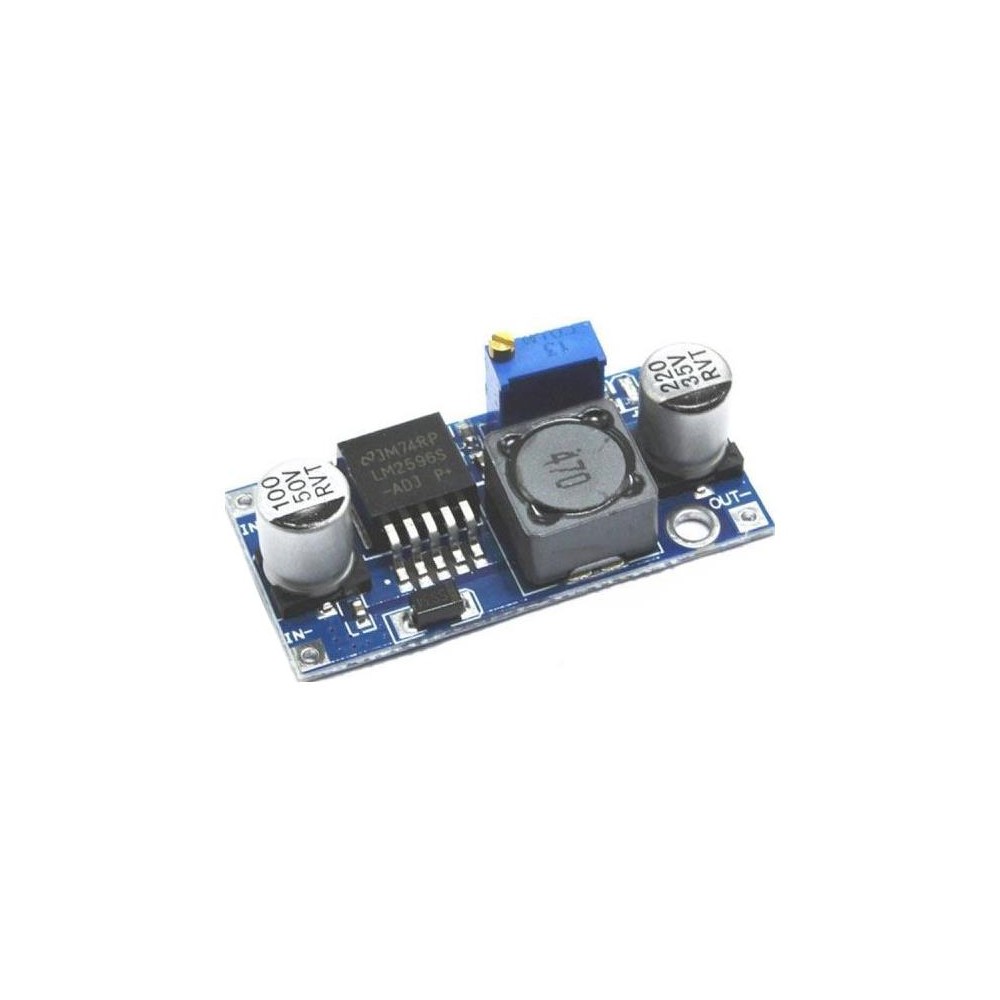

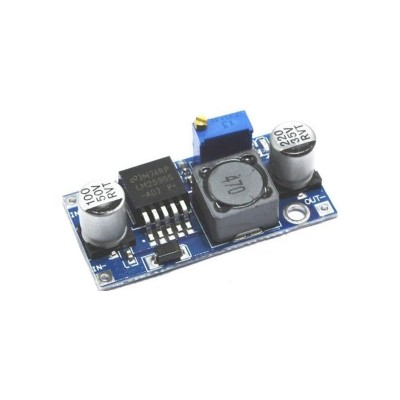

Power supply module, step-down converter 3A with LM2596

Non-insulated pulse converter DC-DC 4.5–35V / 3–33V adjustable with IO LM2596.


Technical parameters :

- input voltage 4.5 - 35 V
- output voltage 3 - 33 V adjustable
- output current 2 A (peak 3 A)
- output power: max.15W
- efficiency 92%
- dimensions: 40 × 21.5 × 13.5 mm / 4 g

The product is not a stand-alone unit, it requires professional installation.
