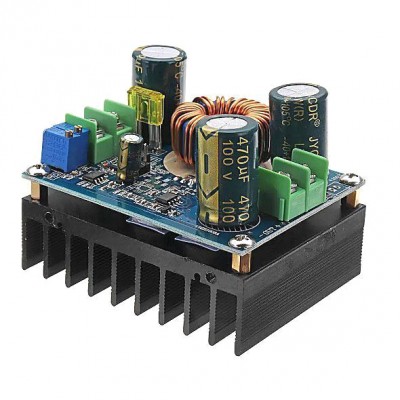

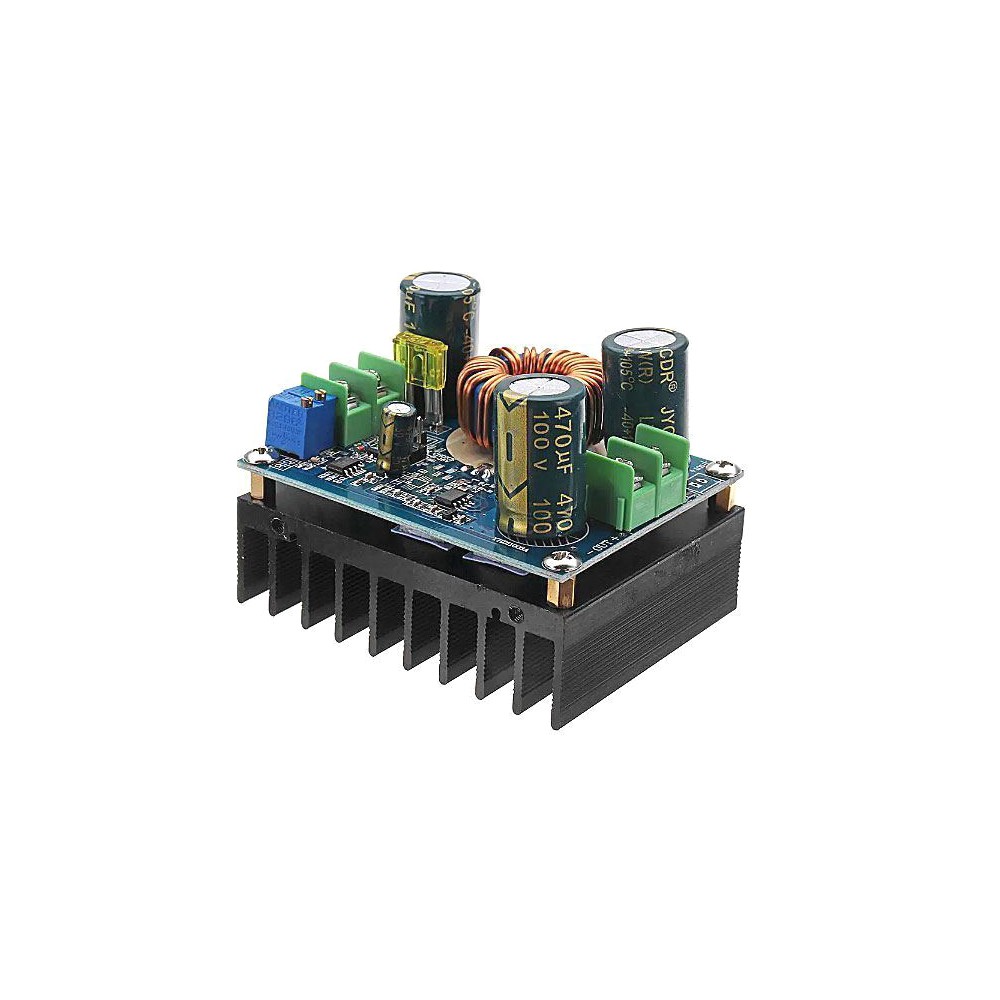

Power supply module, step-up converter CV/CC 600W

Pulse non-isolated step-up converter DC-DC 10–60V / 12–80V with output voltage setting 12–80V, current limit 0–12A.


Technical parameters :

- input voltage 12–60 V (by shorting the jumper 9 - 16 V)
- input current max.12 A
- output voltage 12 - 80 V adjustable
- output current: 0.1-10 A (peak 12A)
- output power max. 600 W
- protection fuses on input-20A
- frequency 150 kHz
- efficiency 95%
- dimensions: 76 × 60 × 56 mm

The product is not a stand-alone unit, it requires professional installation.
