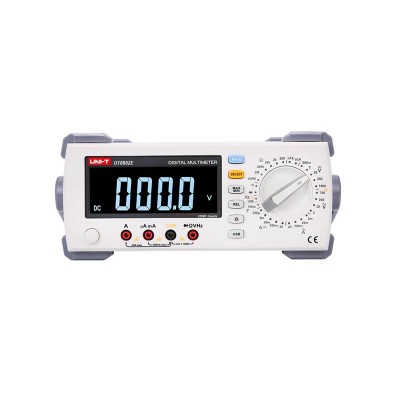

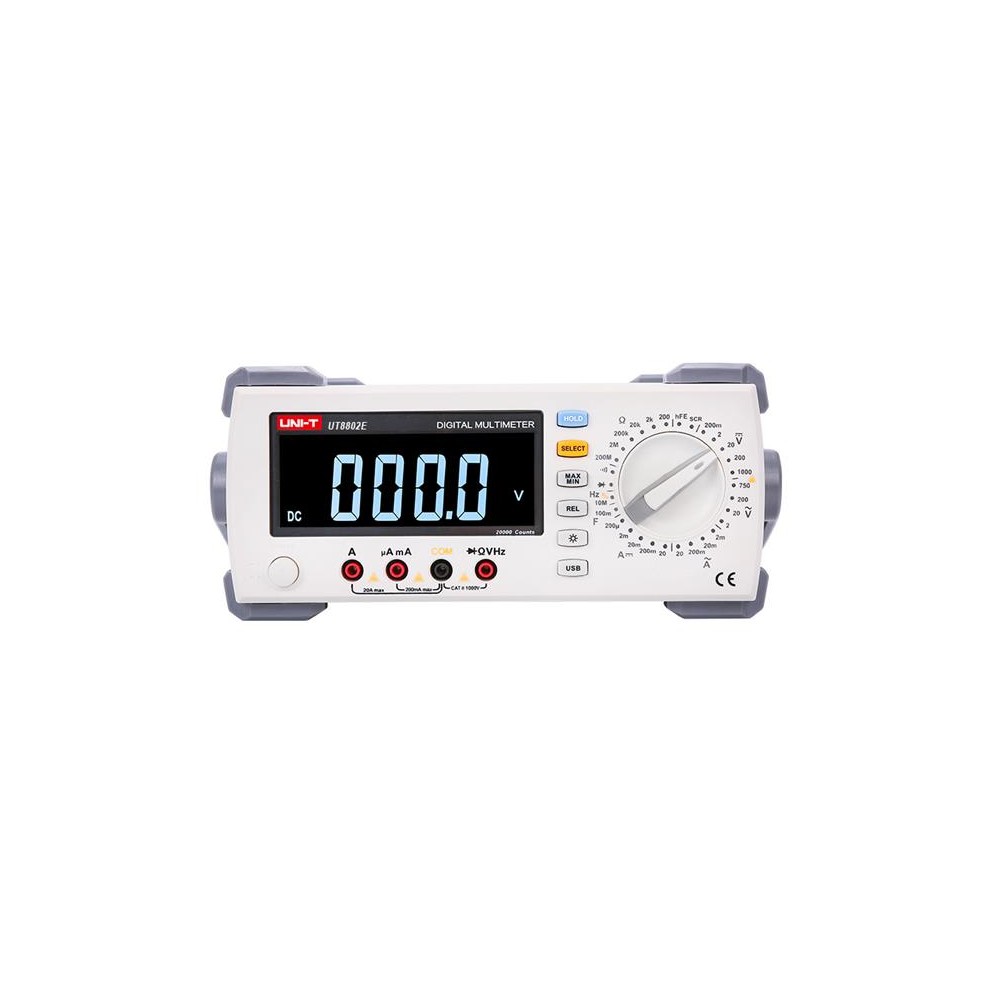

Benchtop Digital Multimeter UNI-T UT8802E
175,93 €
Brutto
4 Przedmioty
TP-07730135-EU
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas pristatymas užsakymams nuo 59€.
Suteikiame 14 dienų pinigų grąžinio garantiją
Benchtop Digital Multimeter UNI-T UT8802E
UT8802E Benchtop Digital Multimeter:
True RMS (UT8803E)
Diode/transistor
USB interface
EBTN LCD screen
Data hold
MAX/MIN
Continuity buzzer
Specifications Model UT8802E:
DC voltage (V): 200mV/2V/20V/200V/1000V
AC voltage (V): 2V/20V/200V/750V
DC current (A): 200μA/2mA/20mA/200mA/20A
AC current (A): 2mA/20mA/200mA/20A
Resistance (Ω): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/200MΩ
Capacitance (F): 20nF/200nF/2μF/20μF/200μF/2mF/20mF/100mF
Frequency (Hz): 200Hz~10MHz
Duty cycle (%): 5%~99%
Inductance (H): —
Temperature (°C/°F): —
Display count: 20000
Interface: USB Device
Range: Manual
True RMS/diode: √
Frequency response (Hz): 1kHz
Continuity buzzer/data hold: √
MAX/MIN: √
USB interface/LCD backlight: √
Input impedance for DCV: Around 10MΩ
AC+DC measurement: √
General Characteristics:
Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
Display: EBTN LCD
Product net weight: 3.07kg
Product size: 265mm x 110mm x 320mm
Standard accessories: USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD,
Standard individual packing: Carton box
Standard quantity per carton: 2pcs
Standard carton measurement: 380mm x 330mm x 320mm
Standard carton gross weight: 6kg
