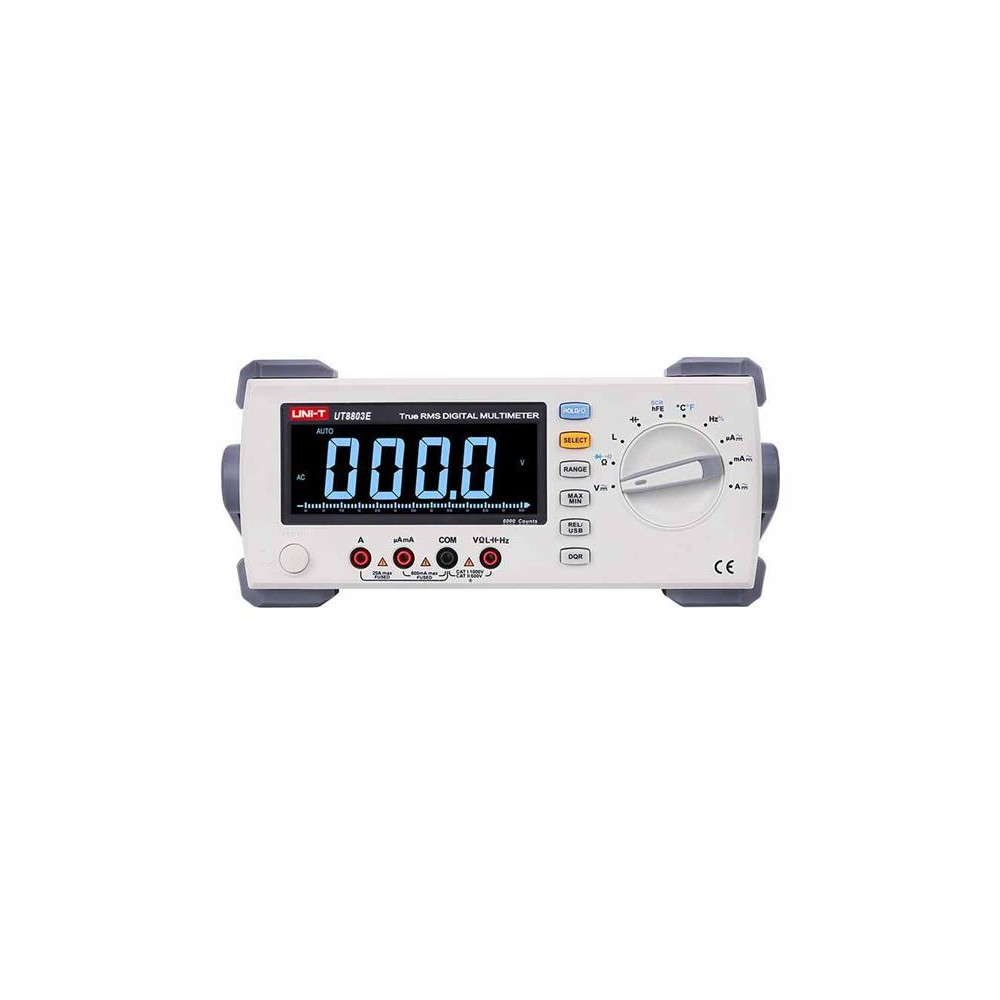

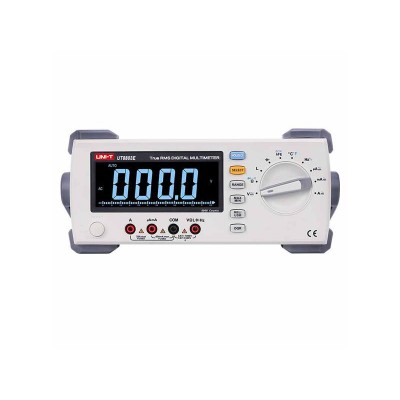

Benchtop Digital Multimeter UNI-T UT8803E

Benchtop Digital Multimeter UNI-T UT8803E
UT8802E Benchtop Digital Multimeter:

True RMS
Diode/transistor
SCR thyristor test
Inductance measurement
USB interface
EBTN LCD screen
Data hold
MAX/MIN
Continuity buzzer


Specifications Model UT8803E:

DC voltage (V): 1000V
AC voltage (V): 750V
DC current (A): 20A
AC current (A): 20A
Resistance (Ω): 60MΩ
Capacitance (F): 6mF
Frequency (Hz): 600Hz~20MHz
Duty cycle (%): 5%~95%
Inductance (H): 100H
Temperature (°C/°F): -40℃~1000℃ , -40℉~1832℉
Display count: 6000
Interface: USB Device
Range: Auto
True RMS/diode: √
Frequency response (Hz): Up to 100kHz
SCR test 9V, can measure unidirectional and bidirectional SCR
Continuity buzzer/data hold: √
MAX/MIN: √
USB interface/LCD backlight: √
Input impedance for DCV: 600mV range: around 3GΩ; all other ranges: around 10MΩ
AC+DC measurement: √


General Characteristics:

Power: 100V/120V/220V/240V ±10%, 47Hz~63Hz
Display: EBTN LCD
Product net weight: 3.09kg
Product size: 265mm x 110mm x 320mm
Standard accessories: USB interface cable, power cord, simple test lead with alligator clips, standard test leads, PC software CD, point contact temperature probe
Standard individual packing: Carton box
Standard quantity per carton: 2pcs
Standard carton measurement: 380mm x 330mm x 320mm
Standard carton gross weight: 6.18kg
