Insulation Resistance Tester UNI-T UT501A

Insulation Resistance Tester UNI-T UT501A

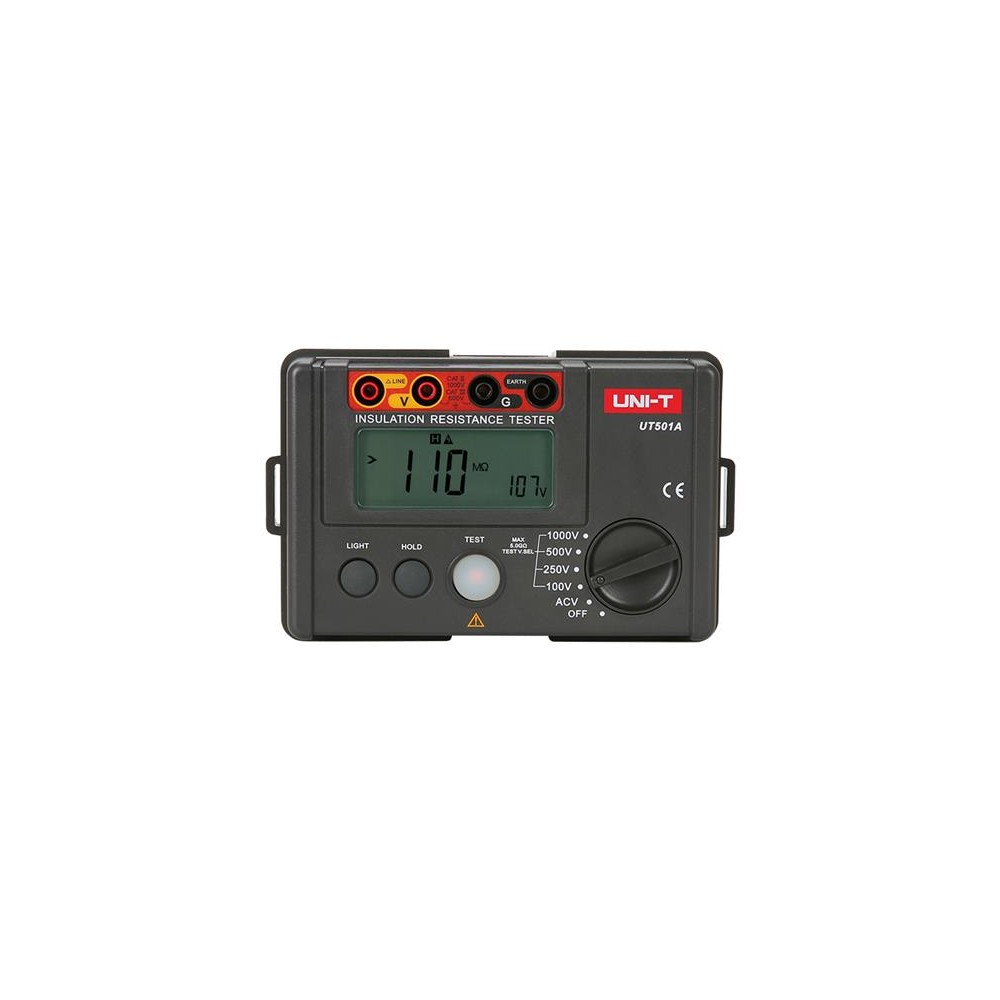

UT501A insulation resistance tester.
The UT500 series electrical insulation testers are used to measure the insulation resistance of electrical equipment and household appliances during regular inspections. This is done by measuring the insulation resistance between the electrical circuits or between the circuits and ground (equipment ground). The UT500 series can measure insulation resistance, AC voltage, low resistance, PI (polarization index) and DAR (dielectric absorption). The individual devices of the UT500 series differ from each other by test voltage ranges (UT501A 100V to 1000V, UT501B 250V to 1000V, UT502A 500V to 2500V), maximum measured insulation resistance (UT501A 0MΩ to 5GΩ, UT501B 0MΩ to 5GΩ, UT502A 0MΩ to 20GΩ) and some other parameters.

These are testing and inspection devices to ensure the correct function of transformers, generators, high-voltage motors, power capacitors, power cables, arresters, switches, electrical machines and appliances. They are ideal devices for performing electrical maintenance and are manufactured in accordance with IEC61010 and IEC61557 standards.

Parameters of the UT501A product :

- measurement of insulation resistance 0MΩ to 5.5GΩ
- DC test voltage 100V / 250V / 500V / 1000V
- AC voltage measurement in the range of 30 to 750V (50 / 60Hz)
- overload indication at> 5.5GΩ
- LCD backlit display with a range of 1999
- automatic range switching
- secondary display for display of test voltage and switched on functions
- red light warning
- power supply 6x battery 1.5V (AA)
- low battery indication
- overvoltage protection CATIII 600 V


Technical parameters of UT501A :

- rated test voltage / insulation resistance measuring range / rated measuring current / internal resistance
100V / 0.00MΩ to 100MΩ / 1.00mA to 1.10mA / 100kΩ
250V / 0.00MΩ to 5.5GΩ / 1.00mA to 1.10mA / 250kΩ
500V / 0.00MΩ to 5.5GΩ / 1.00mA to 1.10mA / 500kΩ
1000V / 0.00MΩ to 5.5GΩ / 1.00mA to 1.10mA / 1MΩ
- open circuit voltage tolerance: + 10%
- short-circuit current of test voltage: less than 1.8mA
- insulation resistance measurement accuracy range: 0.00MΩ to 99.9MΩ: ± (3% + 5) / 100MΩ to 5.5GΩ: ± (5% + 5)

- AC voltage measurement - in the range: 30V to 750V (50 / 60Hz)
- resolution: 1V
- accuracy: ± (2% + 3)

- display: multifunctional LCD measuring 70.6 mm x 34 mm, range 1999
- display backlight: possibility of white backlight or red backlight during warning
- automatic range switching: yes
- buzzer: yes, high voltage indication
- automatic discharge of internal capacity after measurement: yes
- power supply: 6x alkaline battery 1.5V (AA)
- low battery indication: yes, when the voltage drops below 7V
- weight: 0.5kg (including battery)
- product dimensions: 150 x 100 x 71mm
- product color: red and gray
- conditions for factory calibration: ambient temperature 23 ° C ± 5 ° C, humidity 45% to 75%
- recommended calibration: once a year, calibration protocol must be ordered separately
- working conditions: 0 ° C to + 35 ° C / relative humidity is 75% or less
- storage conditions: -20 ° C to + 60 ° C / relative humidity is 80% or less
- altitude: max. 2000m


Contents of individual packaging :

- device UT501A: 1 pc
- test leads: 1 pair
- crocodile clips: 1 pair
- AA 1.5V battery (LR6): 6 pcs
- English, Czech, Slovak instructions: 1pc


Wholesale packaging :

- standard quantity in a carton: 20 pcs
- standard carton dimensions: 500 x 380 x 330 mm
- total weight of carton: approx. 17.7 kg


Manufacturer:
https://www.uni-trend.com/
