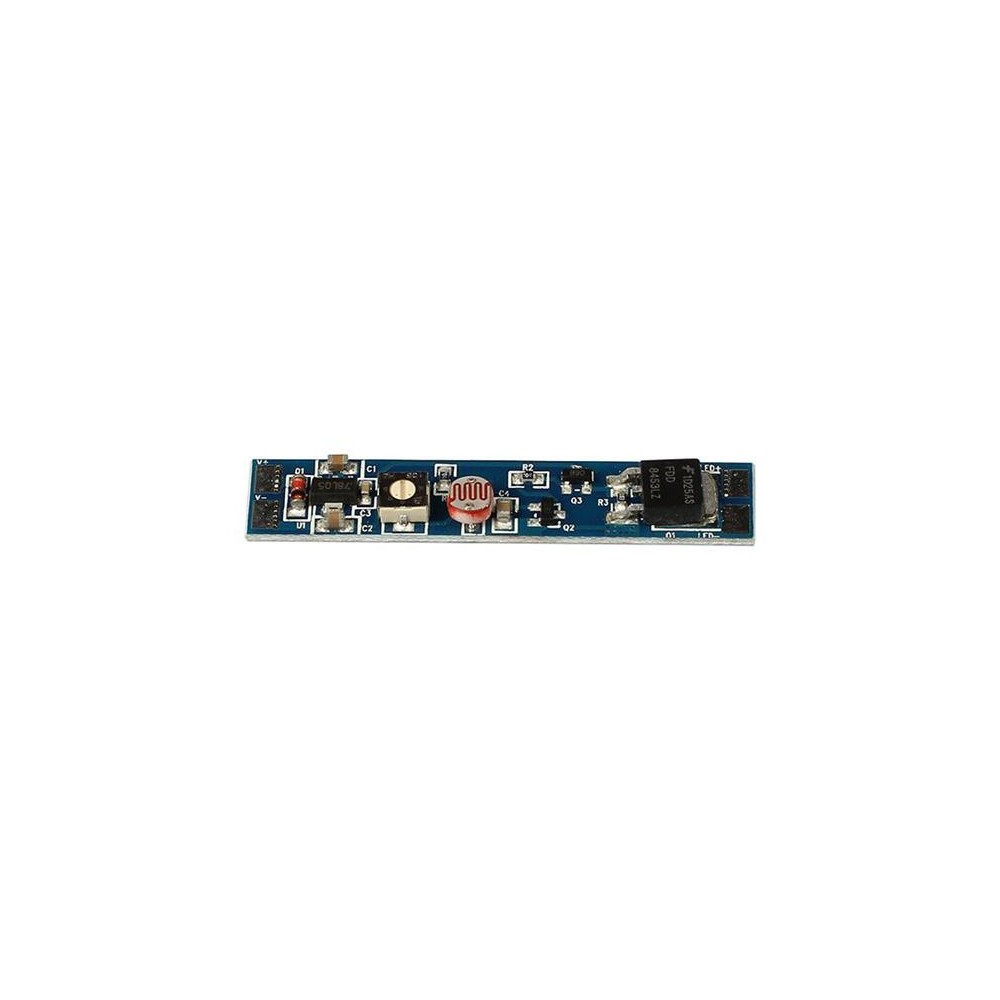

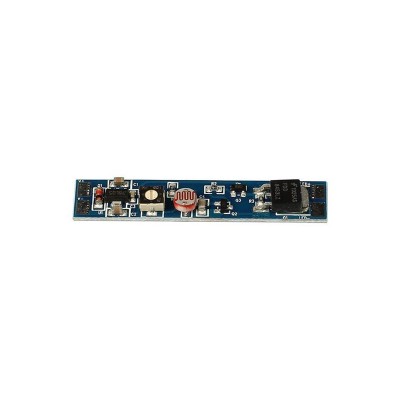

Light sensor switch LSS309 into the AL profile
The twilight switch enables switching LED strips or other light sources with 12-24V supply voltage and max. current 8 A. It can be used wherever there is a need for automatic lighting switching when ambient light falls. It can be used as night light switch or as automatic illumination of house numbers. The size of the switch is designed for mounting into aluminum profiles, but it can be placed in almost any box or device. The natural light impact on the photo sensor of the switch must be ensured. The switch also allows sensitivity adjustment in the range of 2 - 60 lux.
Use: showcase lighting, night lighting, information panels
Mounting: in AL profiles, luminaire panels
Function: ON / OFF depending on ambient light
Parameters:
- Input voltage: 12 V - 24V DC
- Output voltage: 12 V - 24 V DC
- Input current: max. 8A
- Output power: 12 V = 96 W, 24 V = 192 W
- Sensitivity setting: 2 - 60 lux
- Dimensions: 49 x 10 mm
The twilight switch enables switching LED strips or other light sources with 12-24V supply voltage and max. current 8 A. It can be used wherever there is a need for automatic lighting switching when ambient light falls. It can be used as night light switch or as automatic illumination of house numbers. The size of the switch is designed for mounting into aluminum profiles, but it can be placed in almost any box or device. The natural light impact on the photo sensor of the switch must be ensured. The switch also allows sensitivity adjustment in the range of 2 - 60 lux.
Use: showcase lighting, night lighting, information panels
Mounting: in AL profiles, luminaire panels
Function: ON / OFF depending on ambient light
Parameters:
- Input voltage: 12 V - 24V DC
- Output voltage: 12 V - 24 V DC
- Input current: max. 8A
- Output power: 12 V = 96 W, 24 V = 192 W
- Sensitivity setting: 2 - 60 lux
- Dimensions: 49 x 10 mm
