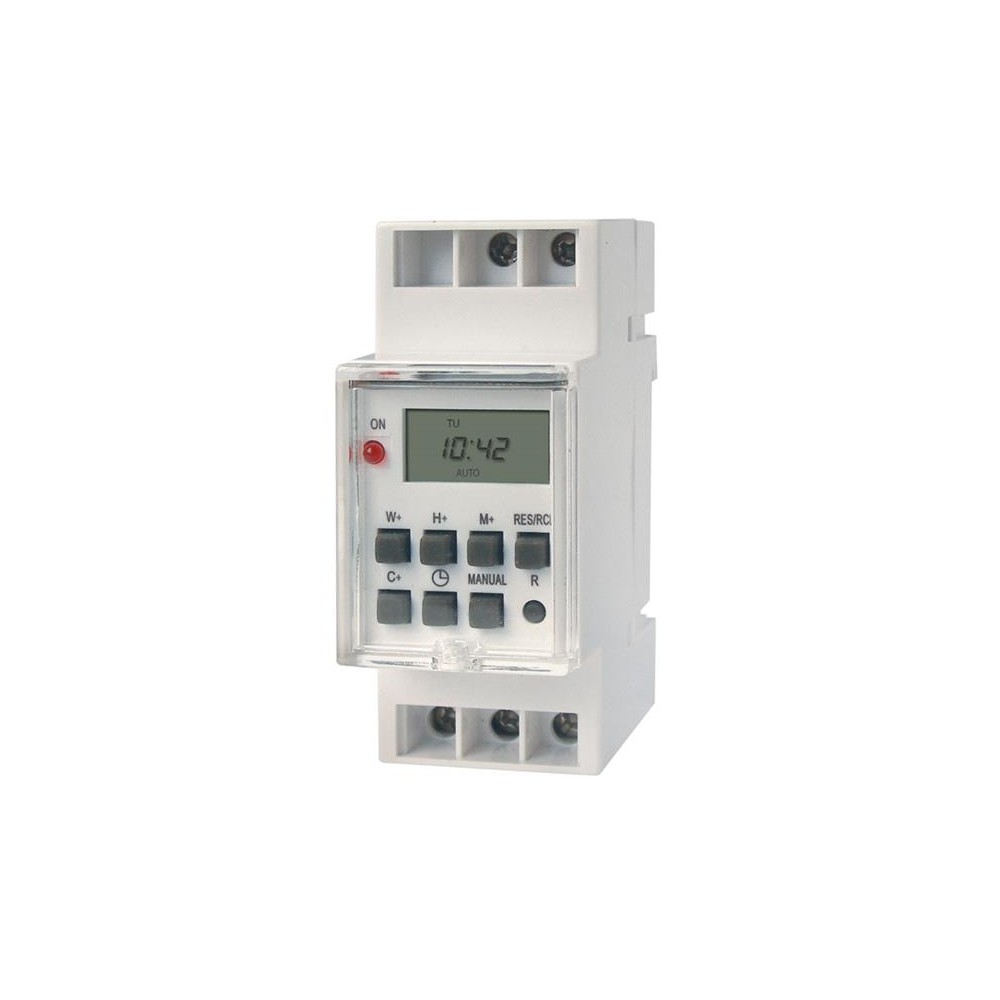

Timer socket GETI GE2 on DIN rail digital weekly

Timer socket Geti GE2 on DIN rail digital weekly
If you need to switch the appliance on or off within a certain time range, simply program a weekly program and connect the appliance.


Product parameters:

- use on DIN rail
- 8 adjustable time programs
- 16 combinations of days or blocks of days. With this function, time programs can be started on specified days, eg SAT-SUN, MON-WED-FRI, etc.
- possibility of manual or automatic control
- Possibility of 12/24 hour cycle
- daylight saving time function - by switching to this function, 1 hour is automatically added to the set time


Technical parameters:

- power supply: 230V ~ AC / 50Hz
- maximum switching load: 3680W / 16A
- maximum switched inductive load: 4A
- switching element: relay
- time step: 1 min
- max. time deviation (at 22 ° C): +/- 3 sec. per day
- backup battery: 1.2V NiMH /> 100h (built-in)
- operating temperature: -10 ° C to 50 ° C
- protection: IP20
- dimensions: (H x D x W) 85 x 45 (60) x 35 mm
