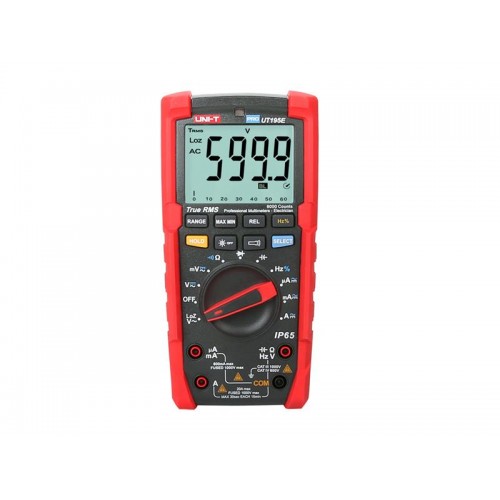

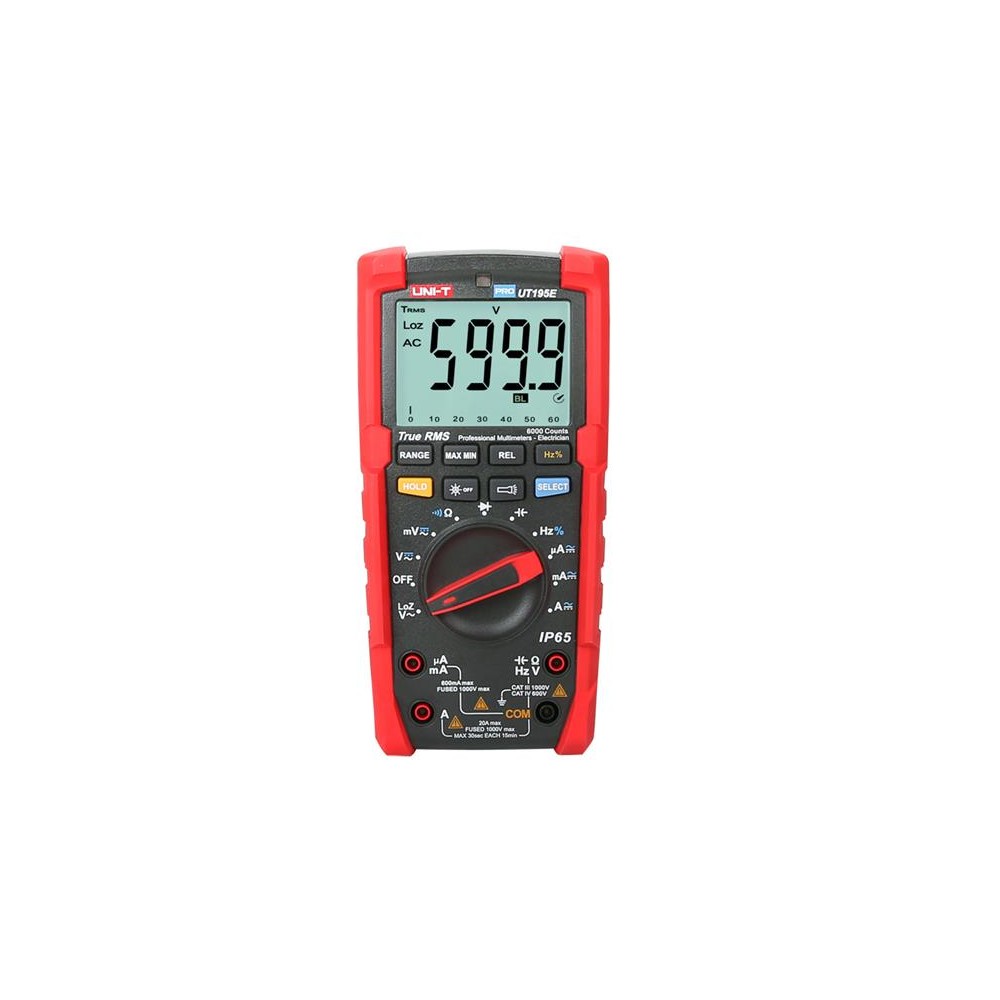

Multimeter UNI-T UT195E PRO Line

Multimeter UNI-T UT195E PRO Line
Multimeter UNI-T UT195E PRO Line

Product parameters and functions:

- display count max. 6000
- display interface (HTN): Single display
- measuring digit conversion rate: times/s 3
- measuring analogue bar conversion rate times/s: 10
- analogue bar: 31 section
- true RMS 　
- low pass filter test: (1kHz 3dB attenuation) 　
- diode/Continuity test: 3.5V
- auto/Manual range
- auto power off
- continuity buzzer
- low battery indication
- data hold
- MAX/MIN
- functional selection
- electrical torch
- auto backlight
- working temperature: 0 °C - 40 °C
- 2m drop proof
- protection grade: IP65

Technical parameters:

- DC voltage: 600mV - 1000V ±(0.5%+3)
- AC voltage: 600mV - 750V ±(0.7%+3)
- LoZ ACV: 600.0V ±(2.0%+3)
- DC current (A): 600.0μA - 20A ±(0.8%+3)
- AC current (A): 600.0μA - 20A ±(1.0%+3)
- resistance (Ω): 600.0Ω - 60.00MΩ ±(0.8%+2)
- capacitance: 6.000nF - 60.00mF ±(3%+5)
- frequency: 60.00Hz - 10.00MHz ±(0.1%+4)
- duty ratio: 0.1% - 99.9% ±(2.0%+5)
- AC voltage frequency response: 45 - 400Hz
- AC current frequency response: 45 - 400Hz
- power supply: 9V 6F22 carbon-zinc or 6LR61 alkaline battery
- LCD size: 66mm × 51mm
- device weight: 473g
- device size: 195mm × 95mm × 58mm


Accessories:
- testing probes
- battery
- carrying bag
- manual

Manufacturer:
UNI-TREND
