Multimeter UNI-T UT191E PRO Line

Multimeter UNI-T UT191E PRO Line

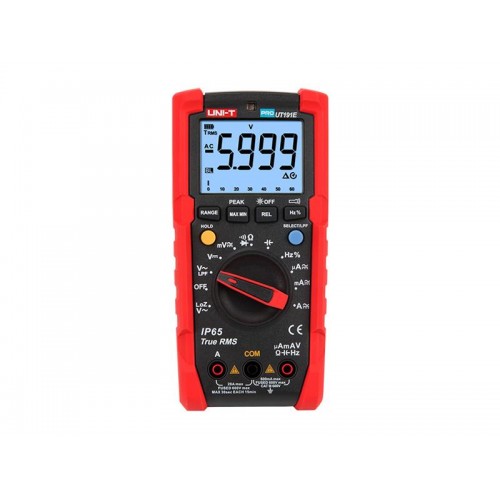

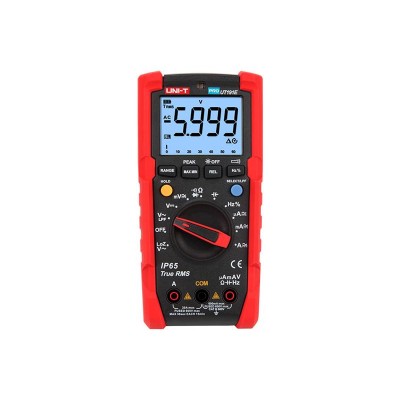

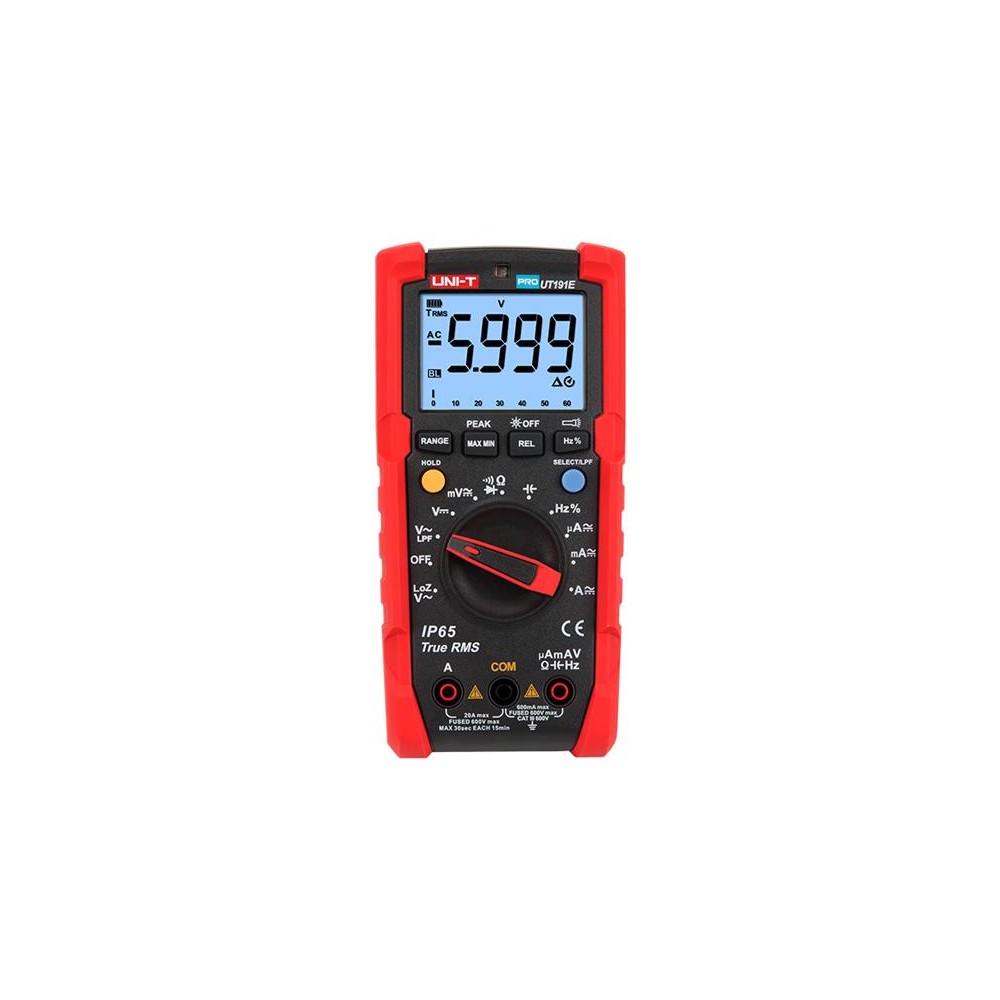

UT191E Professional Multimeter

UT191 Series professional multimeters designed for industrial users. UT191's new function memory' retains the latest mode setting the next time it is turned on, improving efficiency for users.
Applications:
This CE/GS/cTUVus certified multimeter series complies with CAT III 600V and is IP65 rated, suitable for use in damp and dusty environments.

1. Measurement setting saved after power reset
2. IP65, 2m drop proof
3. True RMS/Peak value measurement
4. Auto backlight
5. 20A current measurement
6. LoZ AC measurement


Specifications: Range

DC voltage (V): 600V ±(0.5%＋3)
AC voltage (V): 600V ±(0.7%＋3)
LoZ ACV (V): 600V ±(2%＋5)
ACV LPF: 600V ±(2%＋5)
DC current (A): 20A ±(0.8%+3)
AC current (A): 20A ±(1%+3)
Resistance (Ω): 60MΩ ±(0.8%+2)
Capacitance (F): 60mF ±(3%+5)
Frequency (Hz): 10Hz~1MHz ±(0.1%+4)
Duty cycle: 0.1%~99.9% ±(2%＋5)
ACV peak hold ±(2%+100)
Peak current detection ±(3%+100)


Features:
Display count: 6000
Sampling rate: 3 times/second
Analog bar: graph 31 sections
True RMS: √
AC voltage frequency response 45Hz~400Hz
AC current frequency response 45Hz~400Hz
Diode/Continunity test: √
Auto/Manual range: √
Auto power off: √
Low battery indication: √
Data hold/MAX/MIN: √
Function selection (SELECT): √
Flashlight/Auto backlight: √
2m drop test/IP65: √


General Characteristics:
Power: 9V battery
LCD size: 58mm x 42mm
Product net weight: 428g
Product color: Red and grey
Product size: 180mm x 87mm x 59mm
Standard accessories: Test lead, battery, carrying bag
Standard individual packing: Gift box, English manual
Standard quantity per carton: 10pcs
Standard carton measurement: 545mm x 315mm x 335mm
Standard carton gross weight: 8.8kg

Producer: UNI-TREND
