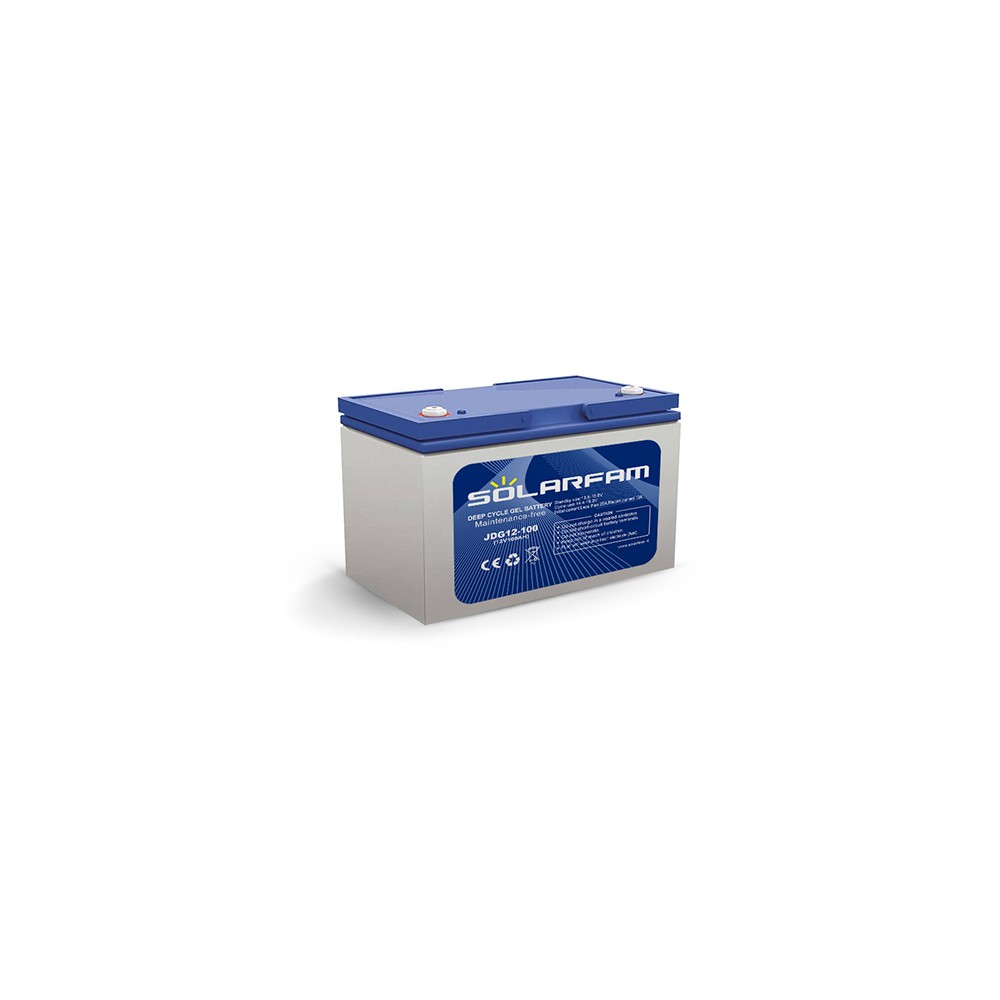

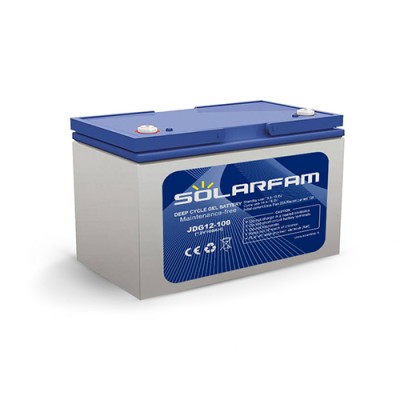

Gel battery 12V 100Ah SOLARFAM for solar systems

The SOLARFAM gel accumulator is especially suitable for solar and wind energy systems and caravans, but also as a replacement for batteries for UPS backup systems, backup power supplies, burglar alarm applications, EPS, telecommunications, mobile warning and signaling devices, etc. It is a maintenance-free, hermetically sealed battery, which allows any working position.


Technical parameters:

- production technology: GEL
- voltage: 12 V
- capacity: 100 Ah
- max. discharge current: 1200A (5S)
- max. charge current: 25A
- dimensions (L x W x H): 330 x 171 x 216 mm
- connections: M8
- weight: approx. 29.5 kg
- internal resistance (fully charged battery 25°C): 5,2 mΩ
- self-discharge process <3%, 25 ° C
- operating temperature: -20 °C to +50 °C

- package: 1 pc
