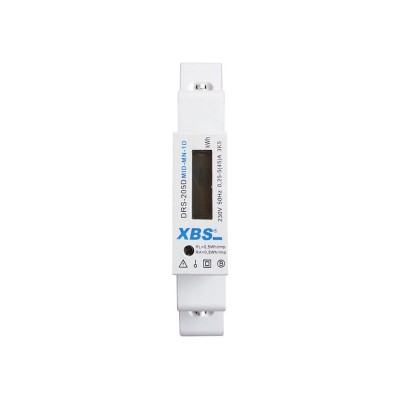

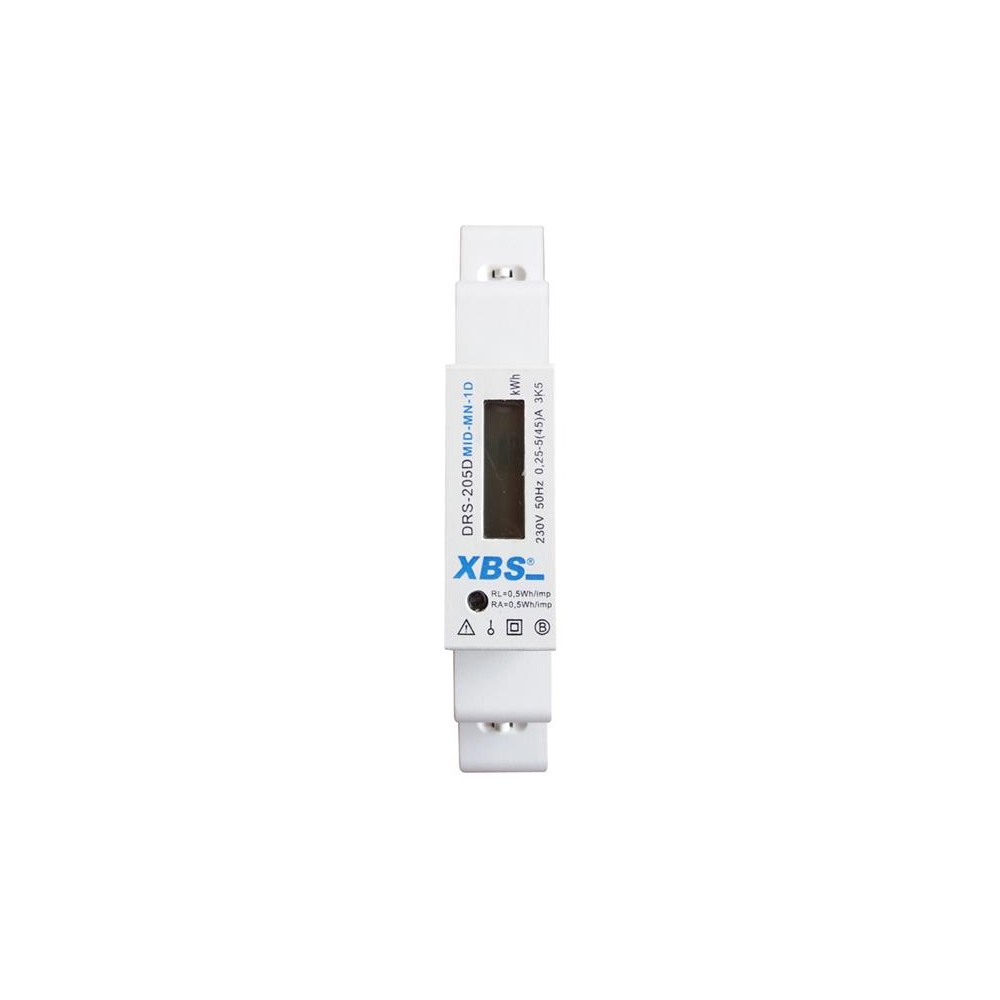

1F DIN rail meter MID-MN-1D

1F DIN rail meter with MID certificate
The electricity meter can be used as a benchmark for measuring active energy for use in residential, commercial and light industries.


Product parameters:

- one phase, two wire design
- DIN rail mounting
- digital display
- wide range of current measurement
- Used as a recording device, can not be reset
- Pulse frequency LED, pulse output
- small dimensions, low weight
- low power consumption
- easy installation


Technical parameters:

- International Standard: EN50470, EN50470-3 MID
- protection against moisture and dust: IP51 (with protective cover)
- accuracy class: 1
- maximum voltage (Un): 230 V AC
- Voltage range: 195 V - 253 V
- maximum AC overvoltage: 4 KV for 1 minute
- voltage surges: 6 KV - 1.2 μS
- Base current (Ib): 5 A
- maximum current (Imax): 45 A
- trigger current: 0.4% Ib - Imax
- Operating frequency: 50 Hz
- Internal power consumption: ≤ 2 W / 10 VA
- Test pulse output (red LED): 2000 pulses / kWh
- Working relative humidity: ≤ 75%
- Storage relative humidity: ≤ 95%
- Operating temperature: -25 ° C to + 50 ° C
- storage temperature: - 30 ° C to + 70 ° C
- Dimensions: 112 x 17.5 x 64 mm
- Weight: 0.12 kg (Net weight)
