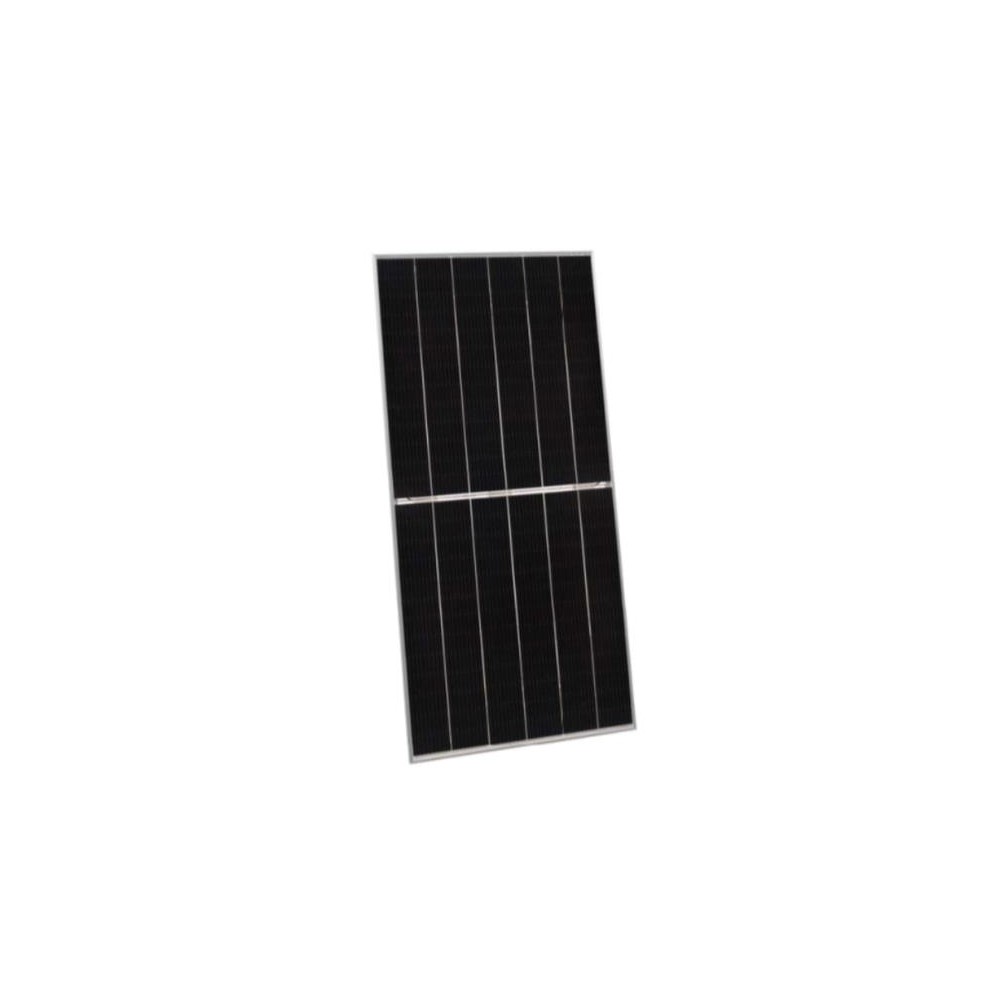

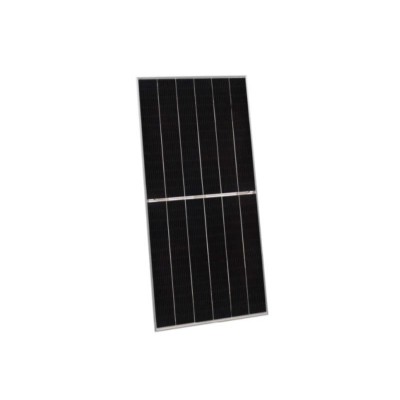

Solar panel JINKO SOLAR 535W JKM535M-72HL4-BDVP silver frame BIFACIAL

The delivery time, from the creation of the order, is about 6-7 working days. These are oversized goods for which special transport needs to be ordered.

Product parameters:

- technology multiple trailers
- improved light capture and current collection to improve module performance and reliability
- PID resistance
- excellent Anti-PID performance assurance through optimized mass production process and control materials
- improved mechanical load
- certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal)
- higher output power
- module performance will generally increase by 5-25%, resulting in significantly lower LCOE and higher IRR

Technical parameters:

- rated output: 535 W
- type: monocrystalline bifacial
- module efficiency: 20.75 per cent
- maximum current (Imp): 13.07 A
- maximum supply voltage (Vmp): 40.94V
- idle voltage (Voc): 49.54V
- short circuit current (ISC): 13.83A
- maximum system voltage: 1500VDC (IEC)
- output tolerance: 0~+3%
- connector type: MC4 / MC4 compatible
- windshield: 2mm hardened anti-reflective glass (front and back)
- degree of protection: IP68
- module dimensions: 2274x1134×30 mm
- cell type: type P Mono-crystalline
- number of cells: 144 (6×24)
- weight: 34.3 kg
- frame: anodised aluminium alloy
- frame colour: silver
- connecting box: IP68
- output cables: TUV 1×4.0 mm2 (+): 400 mm, (-): 200 mm or adapted length
