Polystyrene cutter TIPA ZD-20K

Polystyrene cutter TIPA ZD-20K
Heat cutter suitable for simple cutting and modeling of polystyrene (Styropor®). Thanks to the easily replaceable attachments, the device is versatile. Ideal for workshops, do-it-yourselfers and also for fine work in classic model making - for creating landscapes on model railways, for architectural models, for building prototypes, creating decorations and design elements. A mains supply with an output current of 1.5 A must be used for operation.

Styropor® is a registered trademark of BASF AG


Product parameters:

- Power supply via adapter
- Incl. 3 quick-change attachments (cutting wire, cutting tip, engraving attachment)
- The string on the fork is used, for example, for fine and precise cutting
- The cutting knife is used for cutting larger shapes in the area or for shortening polystyrene
- The engraving attachment is used, for example, to write text or draw in polystyrene
- Short heating time - approx. 10 s
- Stand for safe operation


Technical parameters:

Type: ZD-20K
Power: 8 - 12 W
Power adapter:
Input voltage: 230V AC / 50Hz
Output voltage: 5V / 1500mA

External length: 120 mm (without extensions)
External width: 30 mm
Outer Ø: 30 mm

Dimensions (Ø x W):
- cutting wire: 0.19 mm x 150 mm
- attachment with knife: 1.1 mm x 90 mm
- engraving attachment: 3.6 mm x 40 mm

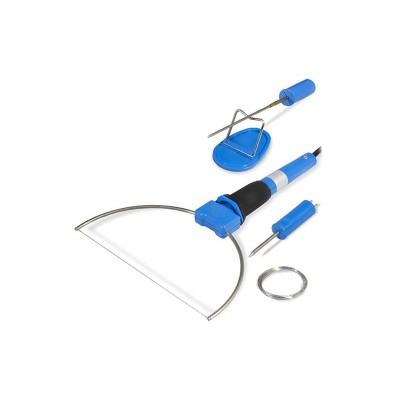

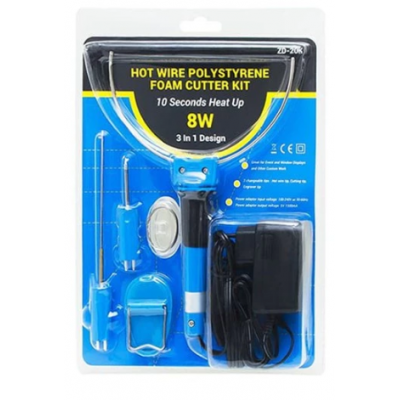

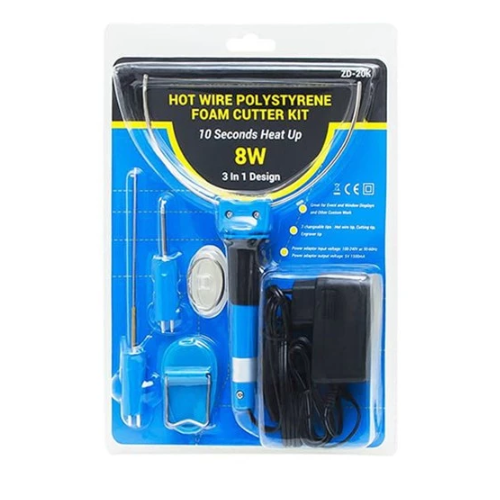

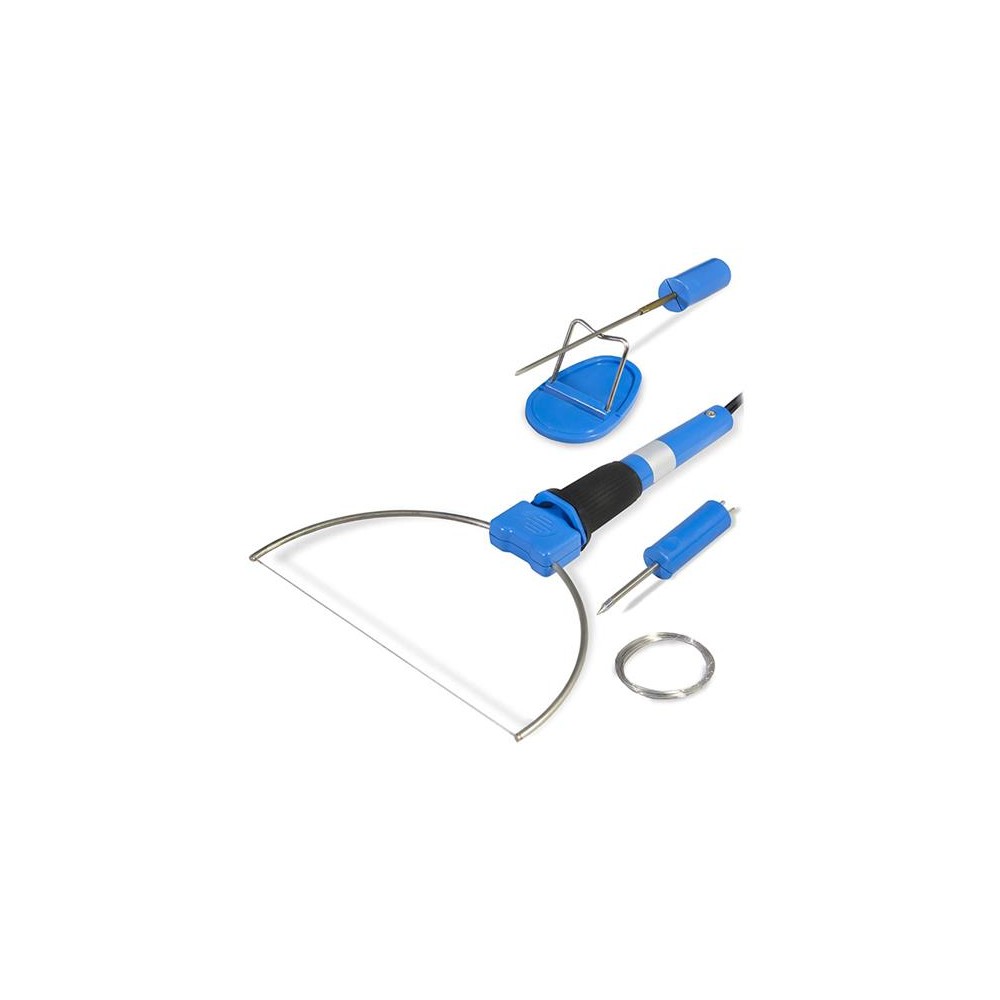

Scope of delivery:
1x basic equipment
1x heat cutter
1x engraving attachment
1x cutting attachment
1x stand
1x adapter
