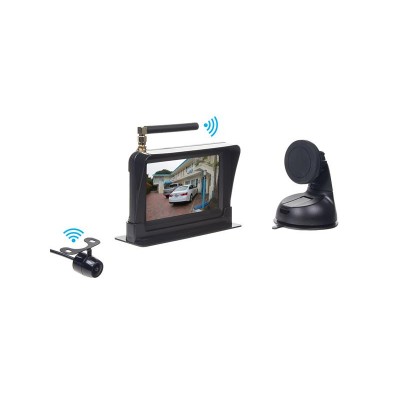

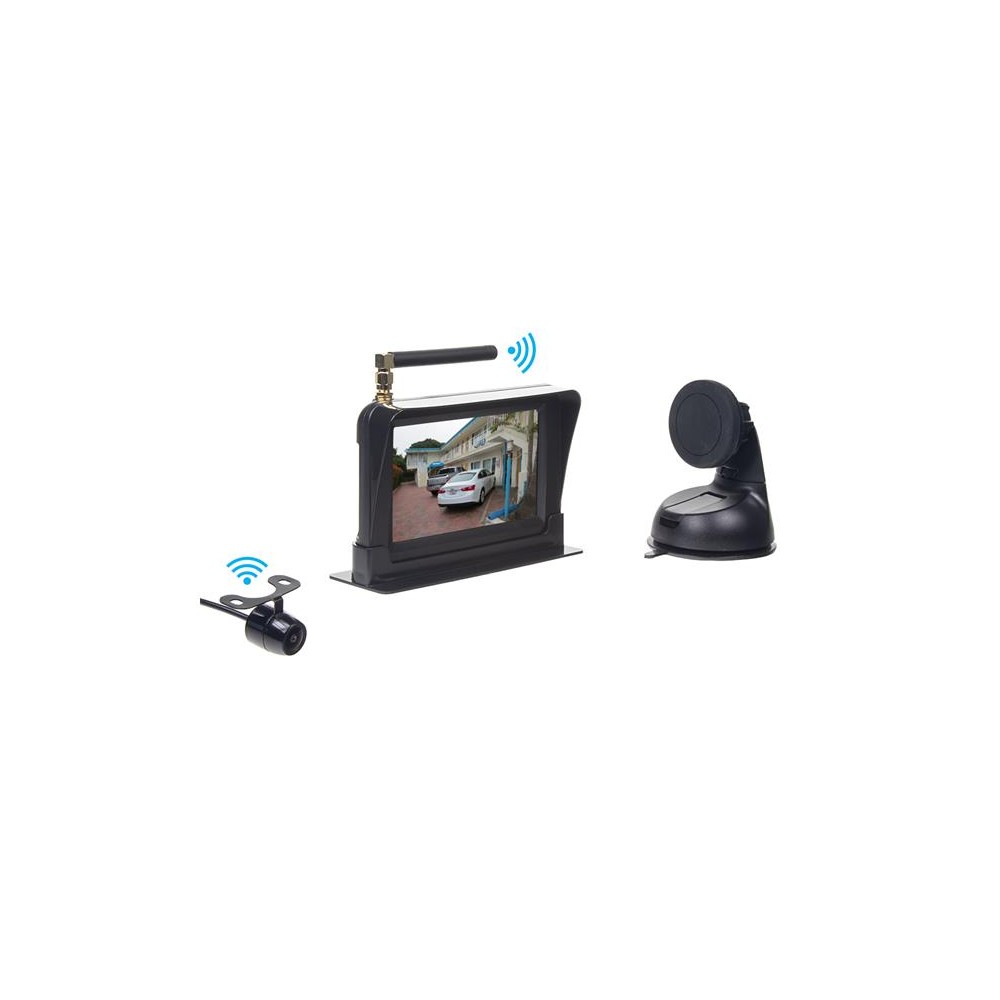

Parking system STU CW2-SET433

4.3 "LCD monitor and camera with wireless signal transmission.

Signal transmission is ensured by a high-quality, signal-resistant signal transmitter.

The main advantage of this system is its very simple installation without the need to pull cables.

Technical parameters:

- on the monitor the possibility of displaying the trajectory with the possibility of setting
- Possibility to switch direct or mirror display of blue loop trimming
- automatic activation of the monitor after connecting the camera to the power supply and subsequent deactivation
- brightness, contrast adjustment
- monitor supply voltage 12-24 V / 6 W
- wireless camera supply voltage 12-24 V / 5 W
- 480 x 272 resolution monitor
- monitor size 129 x 84 x 30 mm (without holder and antenna)
- 110 ° camera
- 480 TV lines
- IP68 protection
- camera size: holder 38 x 18 mm, camera body diameter 18 mm, depth 22 mm
- working frequency 2.4GHz 17dB
- range 15-30 m outdoors
- sun visor

Package contents:

- monitor with sun visor
- power cord for monitor with CL terminal
- power cord for monitor
- wireless camera with power cord
- monitor holder with suction cup
- dashboard holder
- 1x antenna
- small electrical material

* Technical specifications and pictures are taken from the manufacturer and are for informational purposes only!
