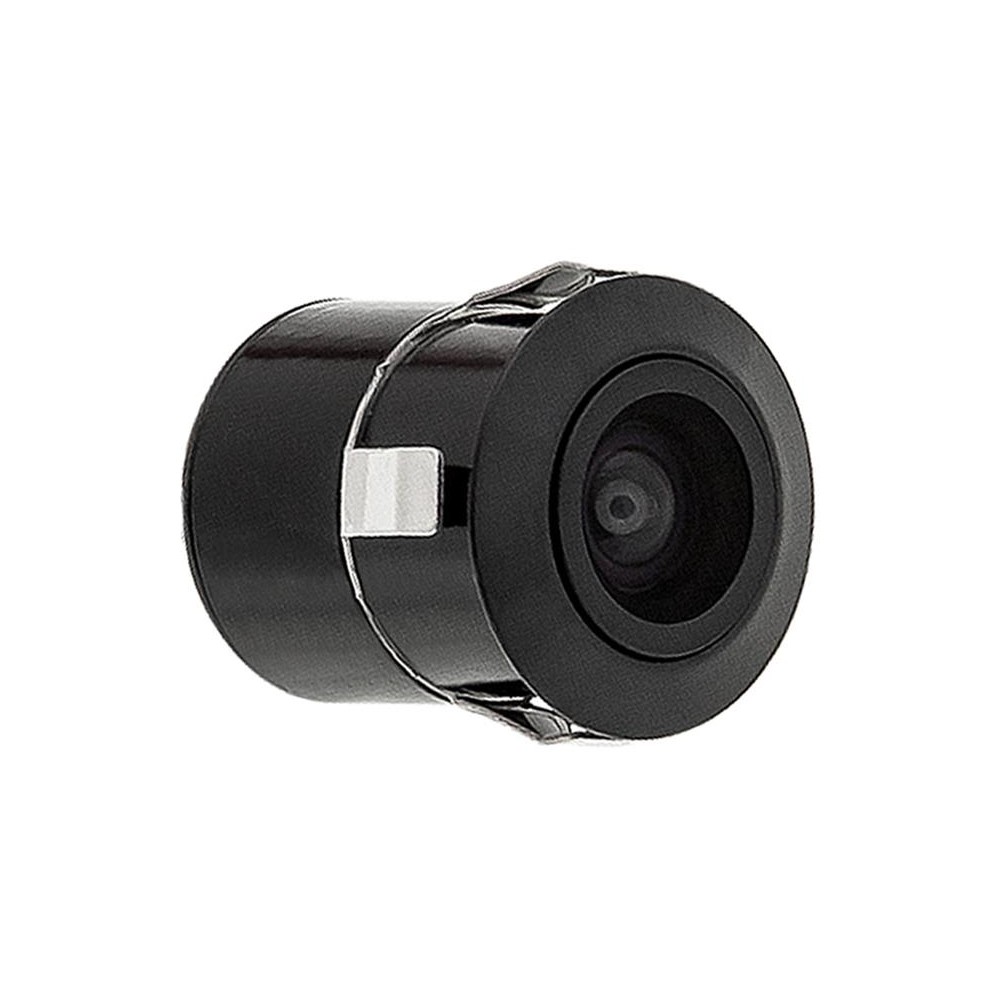

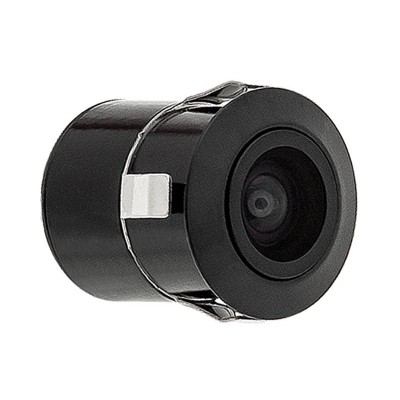

Parking camera BLOW BVS-543

Parking camera BLOW BVS-543
Reversing camera BLOW BVS-543 is suitable for motor vehicles. Checks behind the vehicle when reversing car. The instrument helps when reversing, but it does not dispense with special attention required when reversing. The reversing camera is suitable for installation in passenger cars and light commercial vehicles.

Features:

- Image sensor: 1 / 3.6 "CMOS
- Resolution: 648 x 488 px
- Measuring range: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL / NTSC
- Sync: 15625/15734 kHz
- Sync: 50/60 Hz
- Backlight settings
- Horizontal definition: 480 TV lines
- Minimum illumination: 0.01 lux
- Signal / noise ratio: <48 db
- The viewing angle of the image sensor 170°
- Horizontal viewing angle: 120°
- Vertical angle: 90°
- Diagonal angle of view: 165°
- Protection: IP67
- Voltage range: 9 ~ 16V DC
- Video output: 1.0Vp-p / 75Ω
- Operating temperature: -20 to + 70 °C, 95% RH Max.
