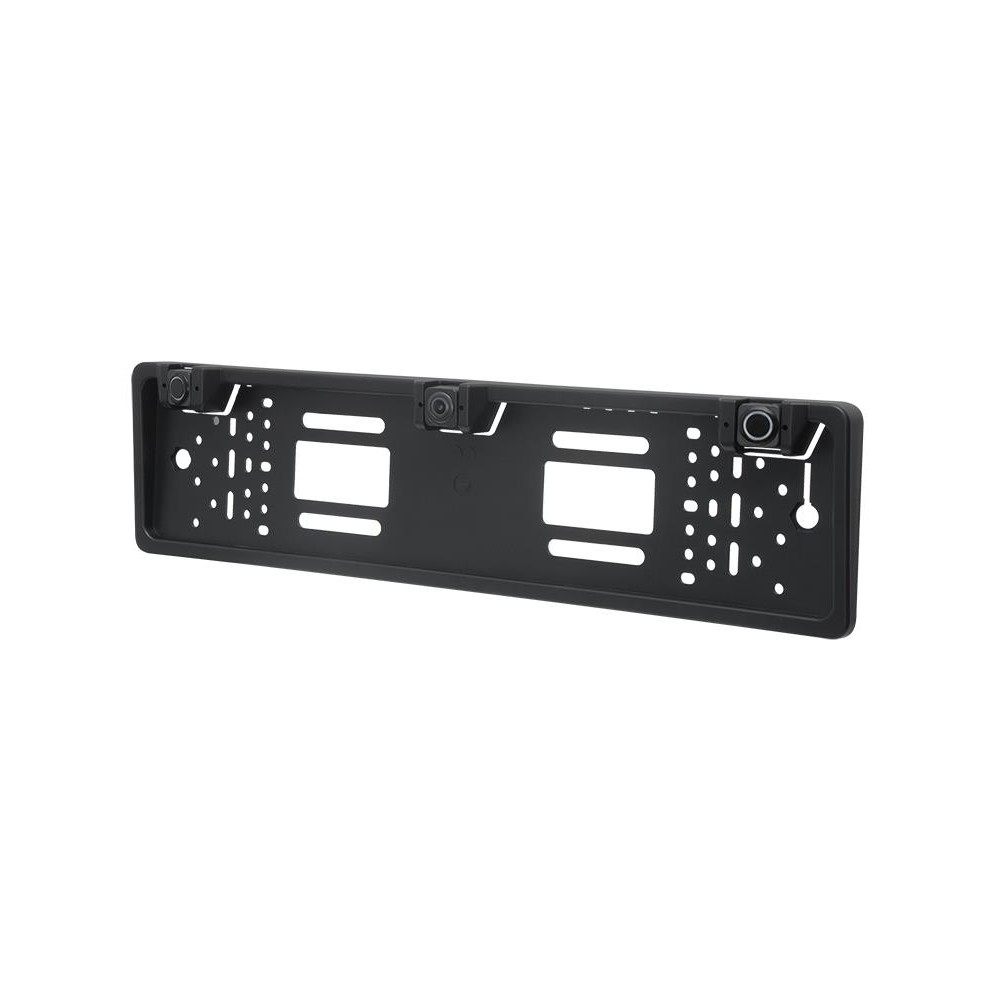

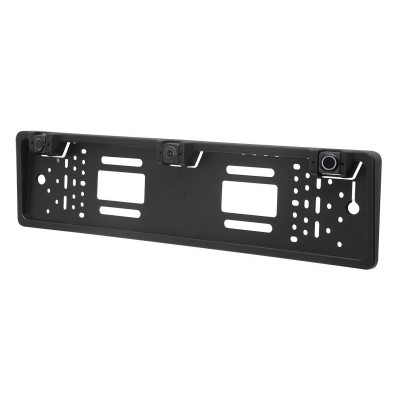

Parking camera BLOW BVS-548

Parking camera BLOW BVS-548
The BLOW BVS-548 reversing camera is suitable for motor vehicles. Checks the space behind the vehicle while driving back. The device helps reverse, but does not deprive the driver of the special attention required when reversing. The reversing camera is suitable for installation in passenger cars and light commercial vehicles.

Camera features:

- Image sensor: 1 / 3.6 "CMOS
- Resolution: 648 x 488
- Measuring area: 4.9 x 3.7
- Lens: F = 1.9 mm / F = 2.0
- Signal system: PAL
- Horizontal synchronization (kHz): 15625/15734
- V-Sync (Hz): 50/60
- Automatic gain control and backlight adjustment
- Horizontal definition: 480 TV channels
- Minimum illumination: 0.01 lux
- Signal / Noise: <48.0 dB
- Viewer angle of the image sensor: 170 °
- Horizontal viewing angle: 120 °
- Vertical Viewing Angle: 90 °
- Diagonal viewing angle: 165 °
- Degree of protection: IP67
- Voltage range: DC 9-15V
- Video output: 1.0Vp-p / 75Ω
- Operating temperature: -20 ~ + 70 ° C, RH 95% Max
- Storage temperature: -30 ~ + 80 ° C, RH 95% Max

Sensor Features:

- Voltage range: DC 9-15V
- Voltage: DC 12V
- Consumption: max. 1.5W
- Measuring range: 0.4 - 2.0 m
- Alarm distance: 0 - 2 m
- Display mode: any type of TFT
- Sensor diameter: 19 mm
- Sensor angle: X, Y, 60 degrees
- Operating temperature: - 30 ° C ~ + 80 ° C
- Alarm type: BIBI
- Sound volume: 65 dB
