Parking sensors PEIYING PY0104W

Parking sensors PEIYING PY0104W
Reverse parking not your forte? Peiying parking sensors with LED display are just for you! Four small sensors located on the back of the car help you prevent unwanted damage or scratches during parking maneuvers. The system automatically turns on when you move backwards and informs you of the distance that separates you from the obstacle. In addition to the notification on the LED display, you can optionally activate a sound signal that indicates the decreasing distance between the car and the obstacle with varying intensity.

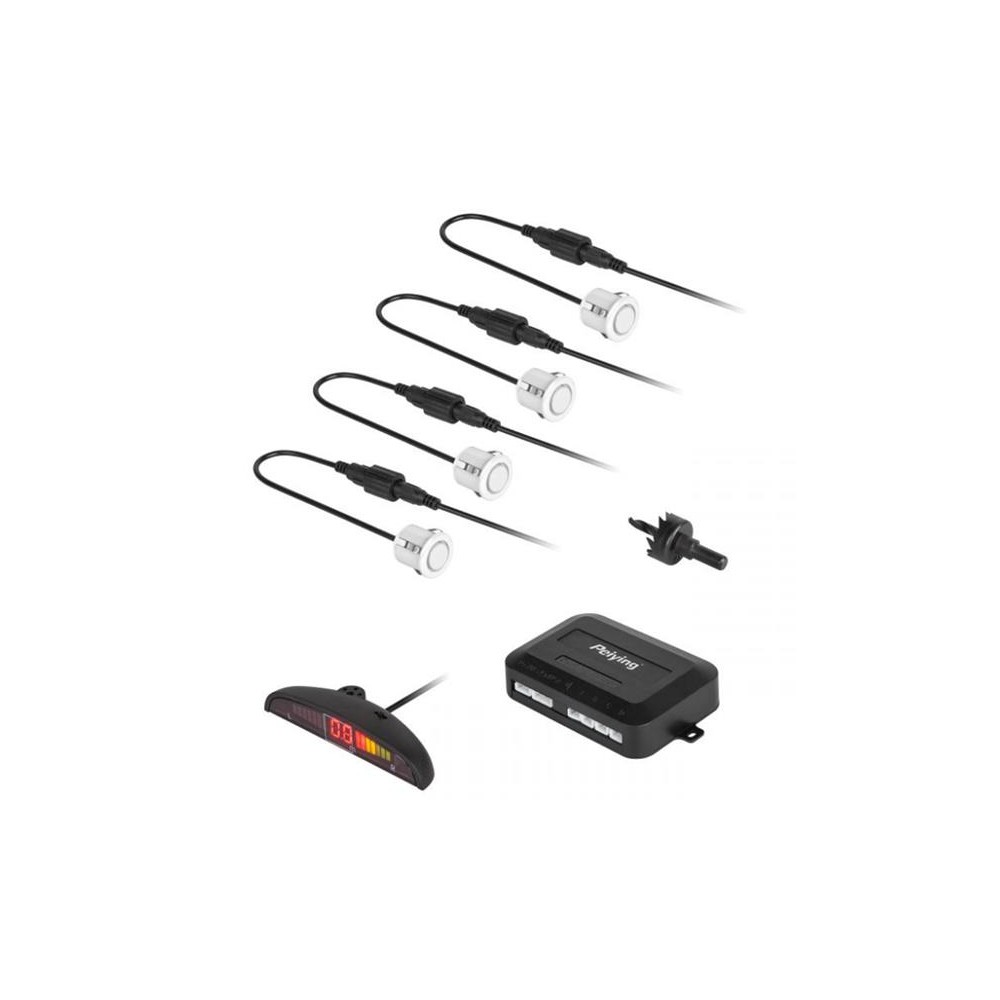

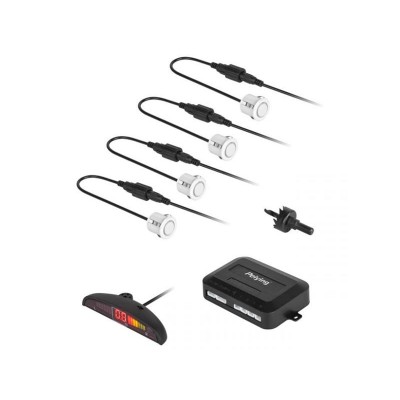

The kit also includes: a control unit, a drill and wires, so you don't need to buy other accessories needed for assembly.

- LED display (7 bars, 3 colors)
- Variable sound indicator
- Alarm noise level: 80 dB
- Sound switch ON / OFF
- Sensor diameter: 18.5 mm
- Sensor range: 0.3~2m

Sensing areas:
- Safe area (green): 1 - 2 m
- Warning area (orange): 0.6 - 0.99 m
- Danger zone (red): <0.59 m

Technical parameters:

- Vertical detection: 90 cm
- Horizontal detection: 90 cm
- Distance from obstacle indicator
- Notification of the position of the obstacle
- Automatic switching on when reversing
- Ultrasonic frequency: 40 kHz
- Max. power consumption: 4 W
- Protection degree of protection: IP67
- Wire length: sensors - 2.5 m; LCD - 5.9 m; power supply - 50 cm
- Operating temperature: -20 ~ + 70°C
- Power supply: DC 12 V, 200 mA
- White color
