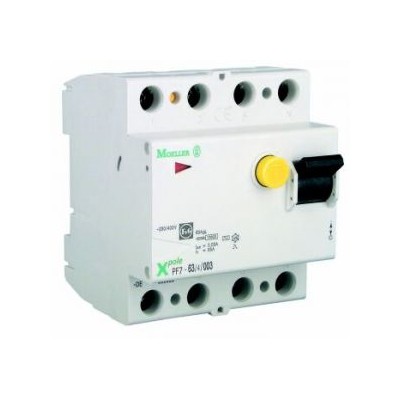

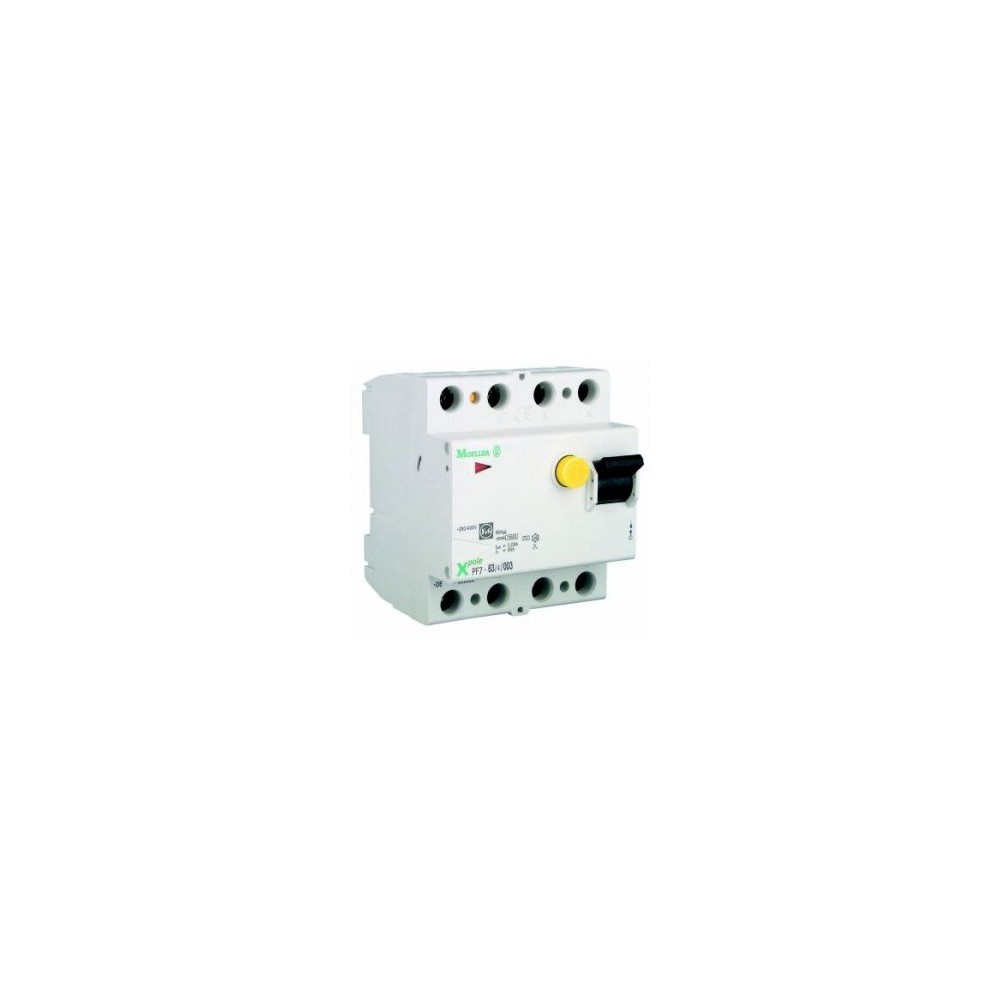

Protector EATON 25A PF6-25/4/003
34,01 €
Brutto
TP-08770120-EU
Saugus Atsiskaitymas
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas Pristatymas
Nemokamas pristatymas užsakymams nuo 59€.
Nemokamas Grąžinimas
Suteikiame 14 dienų pinigų grąžinio garantiją
Protector EATON 25A PF6-25/4/003
Can be used for basic or additional protection of persons against electric shock (I≤n ≤ 30 mA), for additional fault protection (IΔn> 30 mA) or for protection of property against fire (IΔn ≤ 300 mA). Rated conditional short-circuit resistance 6 kA. The network connection side is arbitrary - input / output terminals can be selected. The function of the device is not position dependent. Off-on status indication. Dual clamp function - head / yoke. The use of a 4-pole protector can also be used as 2-pole or 3-pole. The test button T must be activated once a month. Conductor cross-section 1.5–35 mm2. Surge Current Resistance 250 A. AC Type - AC residual current sensitivity. No equipment delay - shock current resistance of 250 A.
Properties:
- Number of poles: 4
- Rated voltage: 400 V
- Rated current: 25 A
- Selective type: No.
- Short circuit resistance (Icw): 6 kA
- Optional equipment: Yes
- Size (according to DIN 43880): 1
- Number of modules in one row: 4
- Type with short delay: No.
- Mounting depth: 69.5 mm
- Rated leakage current: 0.03 A
- Surge current resistance: 0.25 kA
- IP rating: IP20
- Mounting type: DIN rail
- Leakage current type: AC
- Frequency: 50 Hz
- Width: 70 mm
- Length: 80 mm
- Height: 71 mm
- Weight: 320 g
