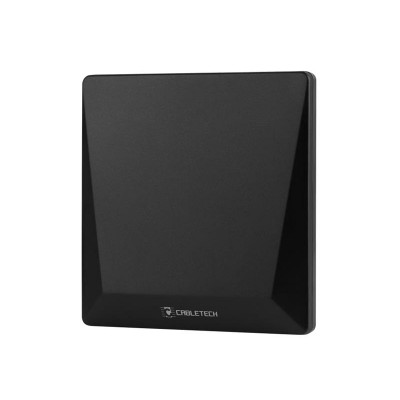

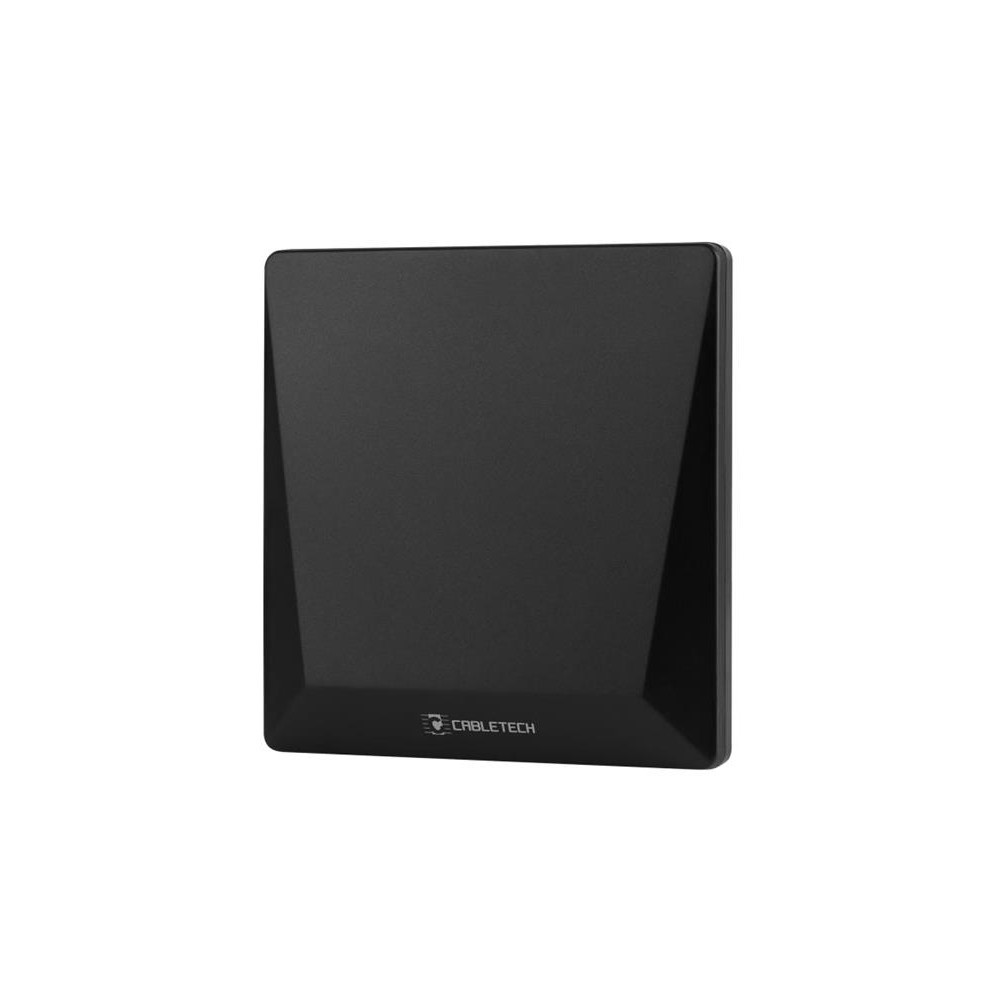

Indoor antenna CABLETECH ANT0690

Indoor antenna CABLETECH ANT0690
CABLETECH ANT0690 indoor antenna

- Adapted for reception of analog and digital terrestrial television - DVB-T
- Receives 4K digital TV, VHF and UHF signals
- Suitable for horizontal and vertical signals
- Built-in amplifier for high gain and low noise
- Power from USB or tuner
- Shielding to minimize interference
- Compatible with HDTV digital terrestrial TV (DVB-T, DVB-T2, ISDB-T, DMB-T / H, ATSC) and DAB radio signal

Technical parameters:

- Frequency range: (VHF) 174-230 MHz, (UHF) 470-790 MHz
- Bands: DVB-T / DVB-T2 /
- DAB + channels: 5-12; 21-60
- Impedance: 75 Ohm
- Gain: (VHF) 10 dB, (UHF) 35 dB
- Max. Output level: 100 dBuV
- Noise level: = <2 dB
- Polarization: Vertical / Horizontal
- LTE filter: Yes
- Compatible with 4K standard: Yes
- Material: Steel + ABS
- Type: Active room
- Dimensions: 16 x 16 x 2.2 cm
- Angular visibility, horizontal: 38 °
- Angular visibility, vertical: 38 °
- Black colour

Power supply:

- via USB: 5 V, 550 mA
- from DVB-T tuner: 5 V, 40 mA

- Included: antenna cable (1.5 m) with ICE plug, USB cable (1 / 4-3 / 4 - USB; 1 m), stand
