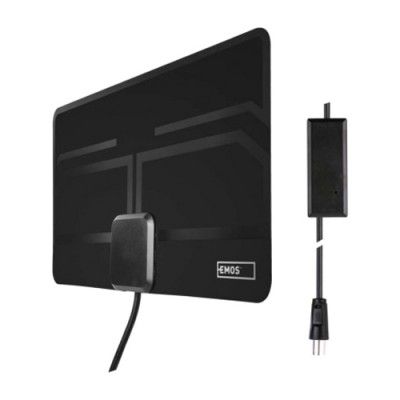

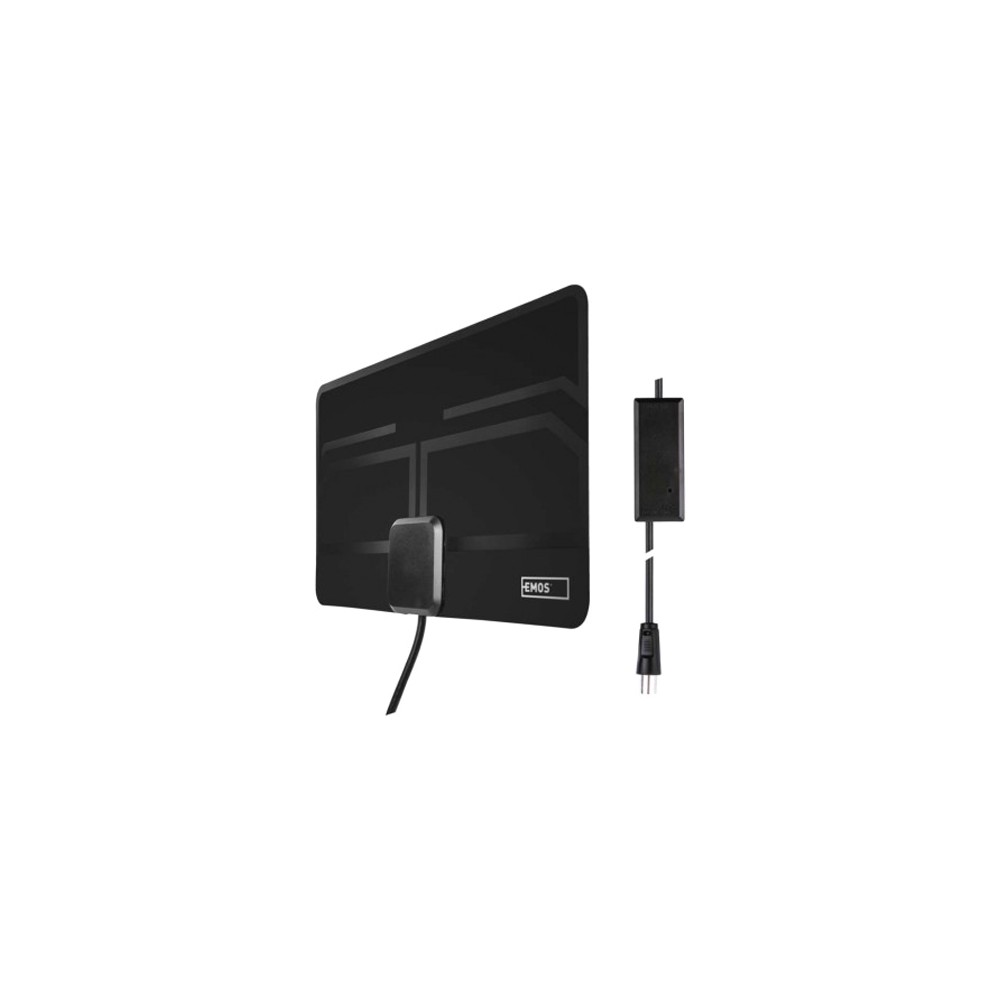

Indoor antenna EMOS EM-9023

Indoor antenna EM-9023, 0–25 km, DVB-T2, DAB, LTE / 4G filter. Designed for receiving digital television broadcasts (DVB-T and DVB-T2) and also digital radio DAB. The antenna is made of flexible and thin material, with its gain it can easily match many large outdoor antennas. All this in a design that does not disturb any modern or classic interior.
The thickness of the antenna is only 1.3 mm, but it is also very durable. In addition to apartments and houses, it can also be installed in caravans and mobile homes. Elegant black color, minimal thickness and various installation variants are the attributes that make the antenna an inconspicuous interior accessory that does not disturb.
A low-noise antenna amplifier with a separate source and an LTE filter, which aims to eliminate unwanted interference from the mobile Internet signal, will always provide you with a flawless spectacle in Full HD quality. The 180 ° receiving angle allows you to receive a signal from multiple transmitters at once. The antenna supports both vertical and horizontal polarization, you can place it horizontally and vertically.
You do not need any tools to install the antenna. All you need will be the included double-sided stickers, with which you can quickly stick the antenna behind the cabinet, on the back of the TV, on the bottom of the coffee table top or on the window - anywhere where you will not be visually disturbed.
The antenna is powered by a USB adapter, which allows it to be used wherever USB port power is available. The antenna is delivered including the power supply in the form of a USB cable together with the USB power supply. You can also use the USB port directly in the TV or set-top box for power.


Technical parameters :

- antenna type: active with amplifier
- recommended installation distance from the transmitter: 0-25 km (city)
- amplifier external low noise amplifier with separate source
- signal reception: DAB / DVB-T / T2
- suitable for receiving Full HD broadcasts: yes
- suitable for reception from multiple transmitters: yes
- receiving angle: 180 °
- polarization: horizontal and vertical
- suitable for long-distance reception: no
- LTE filter: yes
- frequency bands: VHF / UHF
- length of coaxial cable in the package: not specified
connection type: IEC
- amplifier in all-metal body, interference resistant: yes
- DC USB 5 V / 550 mA power supply (included)
- frequency range: 174-230 MHz, 470-790 MHz
- gain control: no
- suitable for caravans, mobile homes: yes
- number of connectors in the package: not specified
- possibility of power supply from STB: yes
- RF output impedance: 75 Ohm
- number of elements: no elements
- installation: not specified
- anteroposterior ratio: not specified
- maximum signal strength at the output: not specified
- 5G filter: no
- size: 1.3 × 228 × 128 mm
- sales packaging: 1 pc, box
