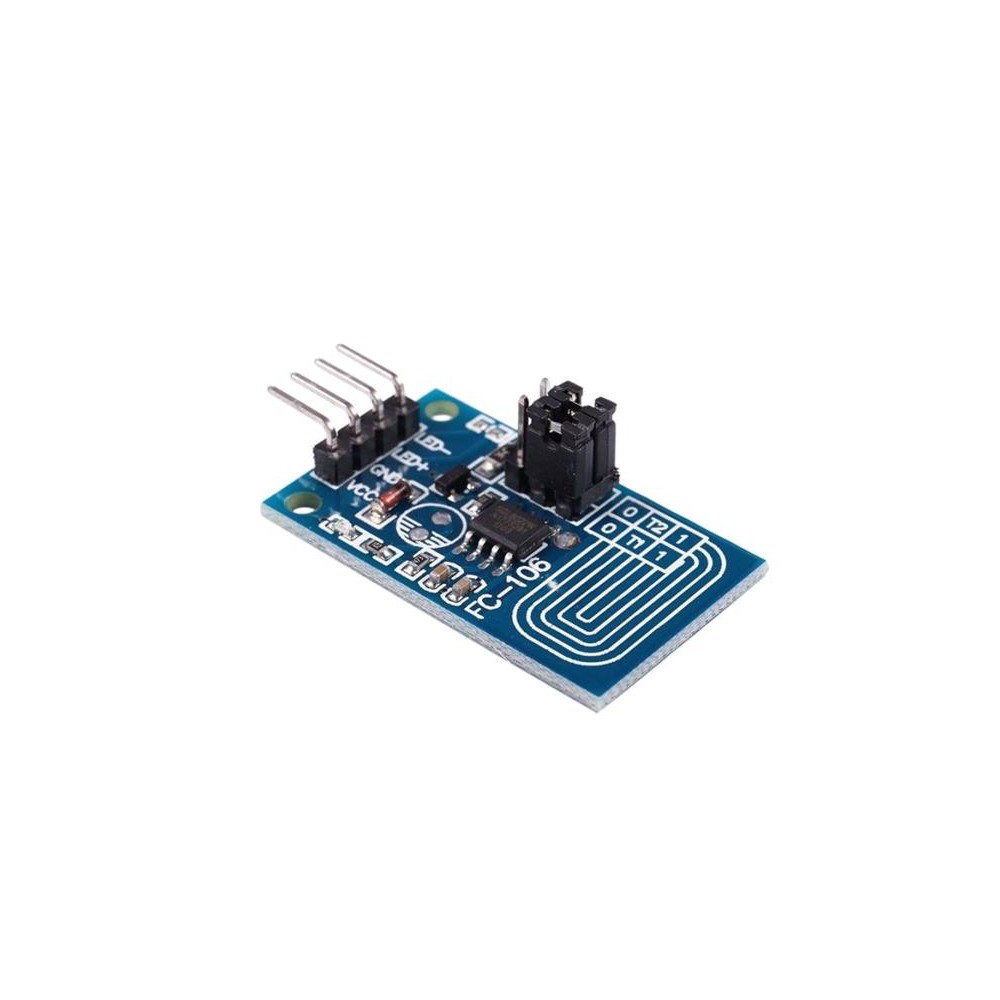

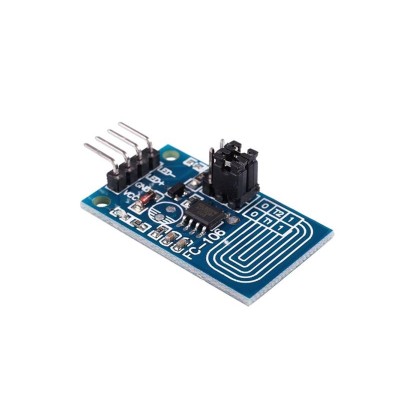

Capacitive touch switch with dimmer

Touch capacitive switch with dimmer for current up to 500mA.


Product parameters:

- simply adjust the brightness of the lighting
- simple connection


Technical parameters:

- PCB size: 33 × 20mm
- distance of mounting holes: 16mm
- size of mounting holes: 2.5 m
- voltage range: 2.4–5V
- maximum output current: 500mA

Use:
- you can click to control the lamp (touch duration is less than 550 ms). Click once, the lamp will light up; click again, the lamp is off.
- by long pressing the switch (touch duration is more than 550 ms) you can achieve a smooth dimming of the lights.
- long press once, the lighting level gradually increases.
- after releasing for more than 3 s, the lighting stays on in this setting.
- again by long pressing the switch, the light level gradually decreases.
- after reaching the max or minimum brightness level, the intensity will not change until the switch is released.

The product is not a self-functional unit, it requires professional assembly.
