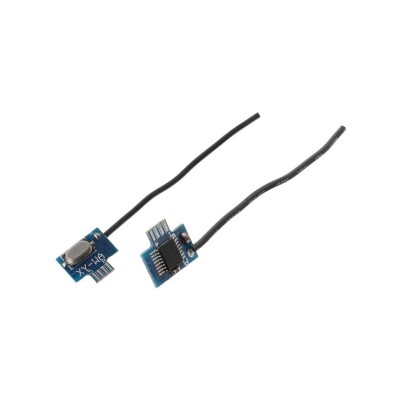

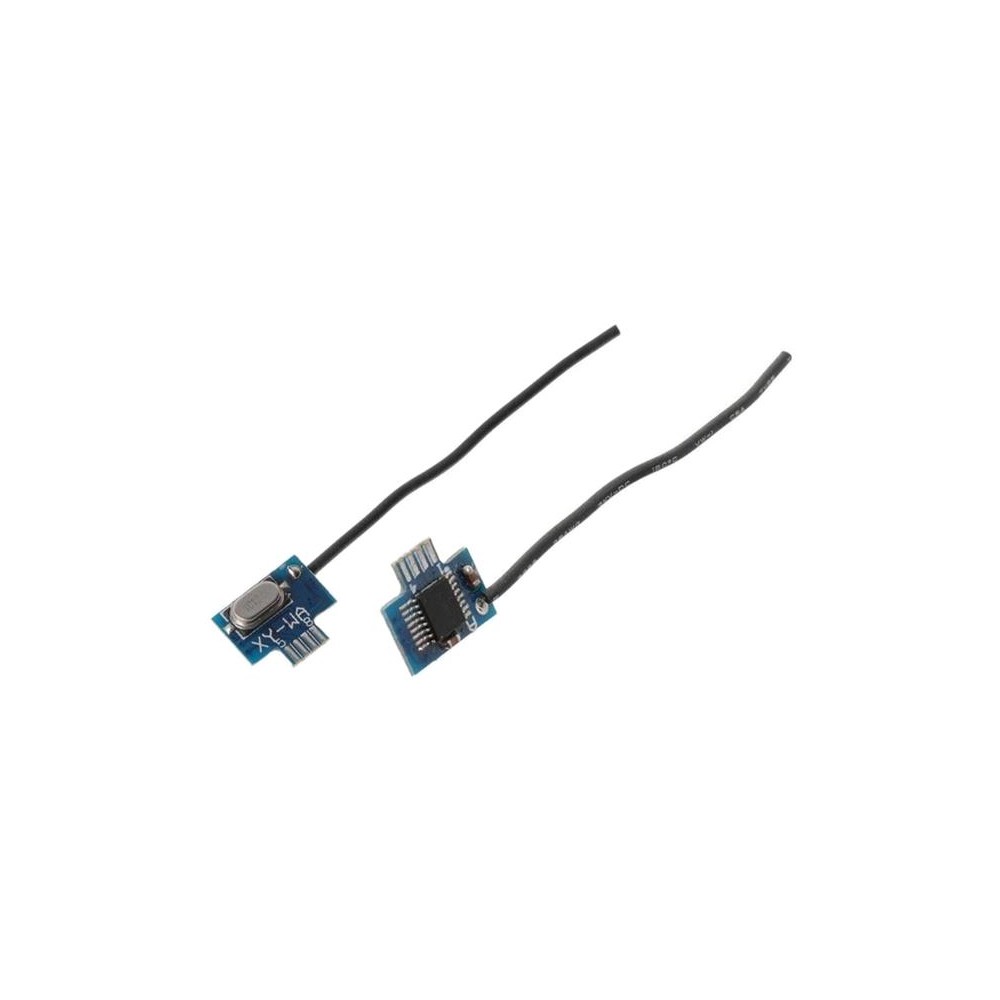

Wireless transmitter + receiver 2,4GHz XY-WA with IC NFR24L01.

Wireless module for data transmission over long distances (up to 200 m) at a frequency of 2,4 GHz and with a maximum transmission speed of up to 1 Mbps. The FIFO operating mode ensures a smooth flow of data between the module and the MCU system. The antenna integrated in the printed circuit board allows the transmission of power up to 100 mW. Communication is via 4-wire SPI for speeds up to 10Mbps, compatible with various MCU / ARM / PIC / AVR / STM32 microprocessors and development kits such as Arduino. It is widely used in industry, security installations, telemetry, aeromodelling and many other applications. PCB version A has 8 pads with a spacing of 2.54 mm.


Technical parameters:

- Trade name: XY-WA
- supply voltage: 1,9 ~ 3,6V
- transmission speed: 1 Mbit / s, 250 Kbit / s, 125 Kbit / s, 62.5 Kbit / s
- optional power transmission - 4 stages
Operating frequency: 2,400 ~ 2,525 GHz

Connection mode:
1.SPI_MOSI
2.SPI_SS
3.SPI_CLK
4.RST

- spacing of connection points: 2,54mm
- dimensions: 12,6 × 10,8 mm

The product is not a stand-alone unit, it requires professional installation.
