Solder bath ZD-8911B, lead-free
40,17 €
Brutto
TP-06530094-EU
Saugus Atsiskaitymas
El. Bankininkystė, Grynais arba Visa - Mastercard
Nemokamas Pristatymas
Nemokamas pristatymas užsakymams nuo 59€.
Nemokamas Grąžinimas
Suteikiame 14 dienų pinigų grąžinio garantiją

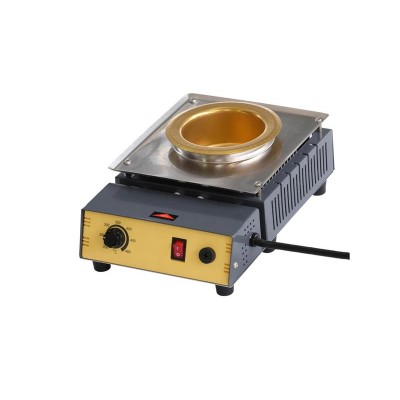

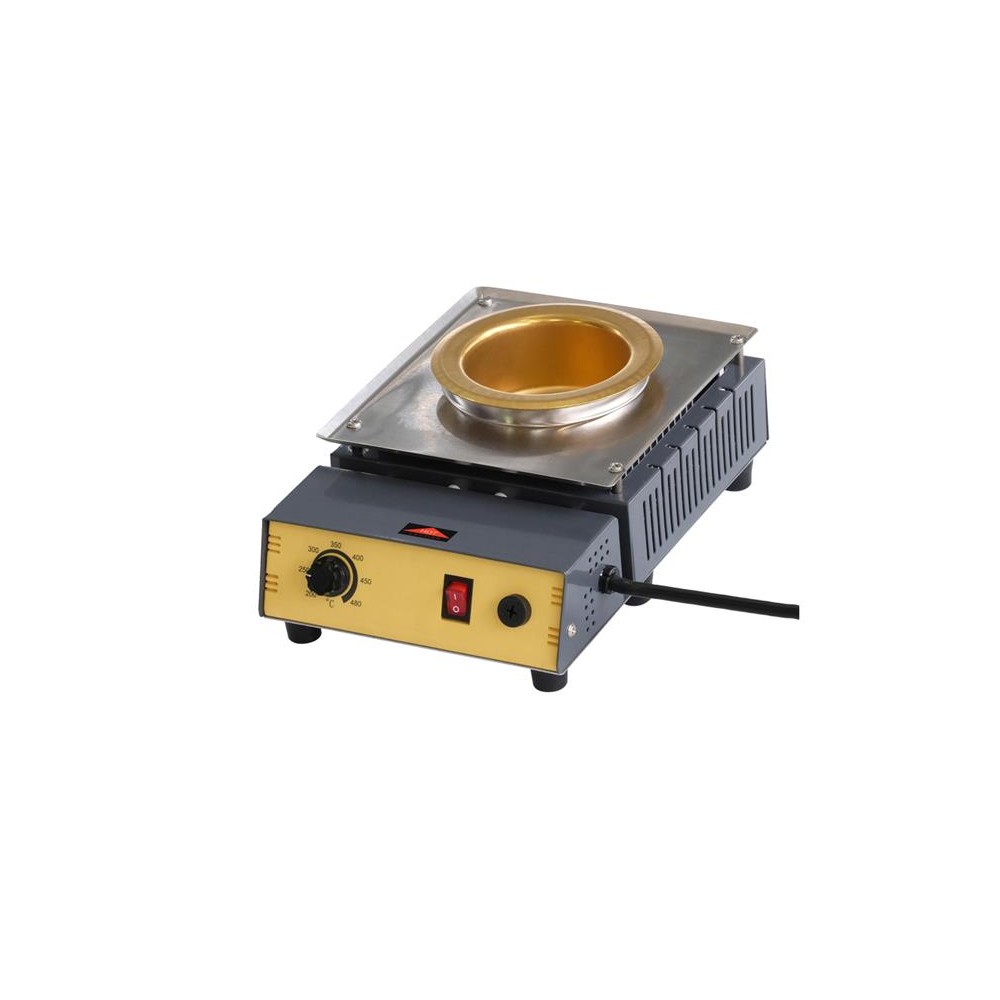

Solder bath ZD-8911B, lead-free
The ZD-8911B soldering bath is intended, for example, for fast tinning of the ends of braided wires - cables before later assembly into terminals. The heated cup with a diameter of about 80 mm can hold about 1350 grams of lead-free solder alloy. The soldering bath has a power input of 300W and good heat transfer, which allows a rapid rise in temperature to 200 to 480°C in 8 to 25 minutes. The ZD-8911B bath is made of corrosion-resistant and heat-resistant materials with a long service life and is suitable for larger production of various cable harnesses.
Product parameters:
- precise electronic temperature control
- fast heating of the brazing alloy and maintaining the temperature during work
- diameter of the cup with melt approx. 80 mm
- soldering bath capacity 1350 g of melt
- long service life of the device
- is recommended for lead-free solder alloys
Technical parameters:
- rated power consumption: 300 W
- power supply: 230 VAC , 50Hz
- bath diameter: 80 mm
- spa capacity: 1350 g
- temperature range: 200 to 480 °C
- warm-up time: 8 to 25 minutes
- dimensions: 160 x 100 x 240 mm
Package contents:
- soldering bath ZD-8911B
- instructions for use
Wholesale packaging:
- standard quantity: 4 pcs
- dimensions of the standard carton: 29 x 23,5 x 42,5 cm
- standard gross carton weight: 9 kg
