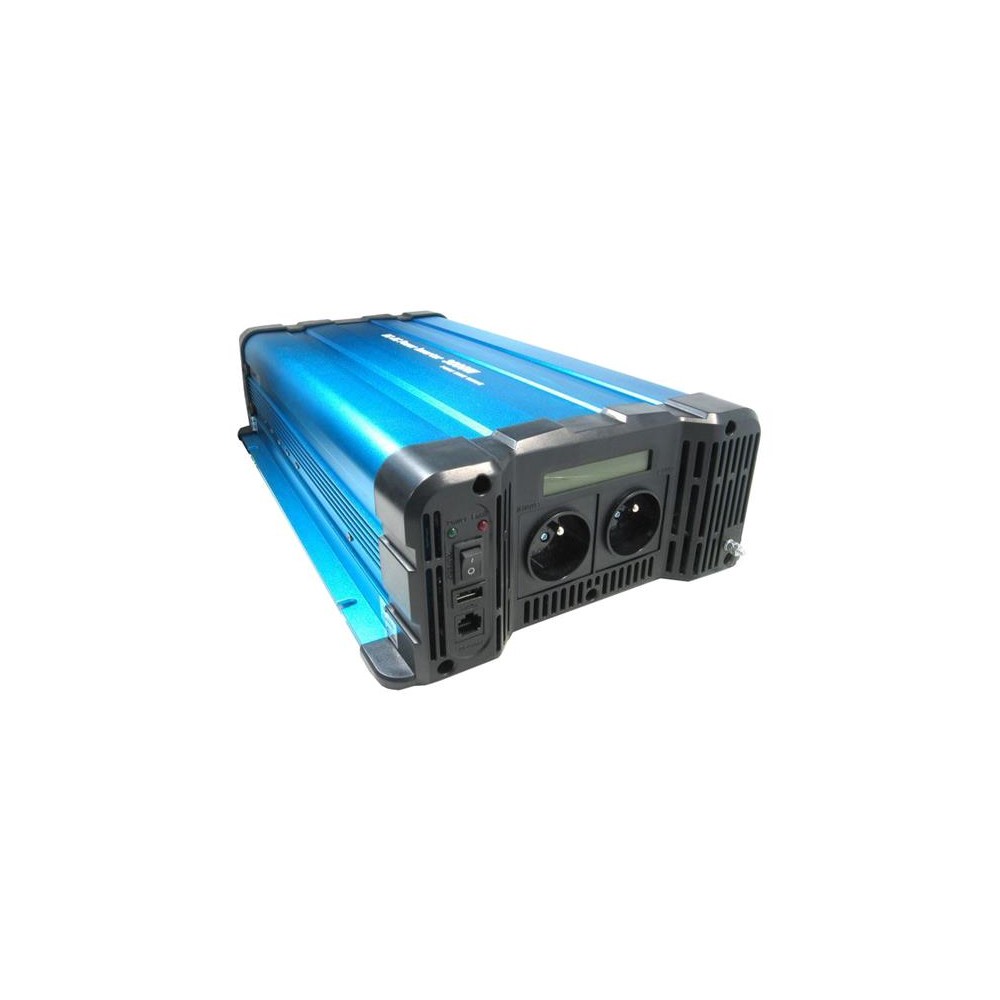

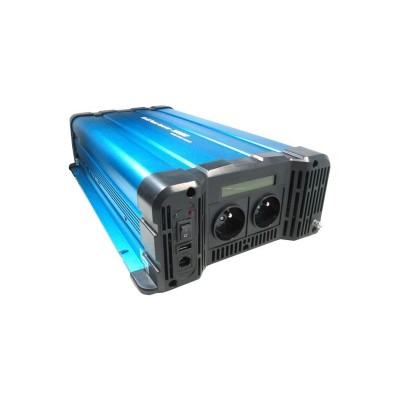

Power inverter Solarvertech FS3000 12V/230V 3000W pure sine wave D.O. wireless

Top converter with pure sine wave suitable for appliances with high demands on the pure sine wave of the supply voltage. When using this inverter, there is no risk of damage to appliances with sensitive electronics, such as TVs, monitors, some coffee machines, chargers, etc. however, it is necessary to use a battery with a capacity of min. 200Ah and sufficiently dimensioned supply wires (for distance up to 5m min 35mm2). The inverter is equipped with a removable remote control with wireless transmission to a distance of up to 5m. The inverter can also be operated without a remote control.


Technical parameters:

- rated input voltage: 12 VDC
- allowed input voltage range: 10.5 V-15 VDC
- rated output voltage: 230 VAC + USB 5 VDC / 2.1 A
- permissible load: 3000W permanent, 6000 W 3sec., 3500 W 3min.
- current consumption: 1.2A no-load, 260A at full load, 12mA in the off state
- efficiency: 89 ~ 93%
- undervoltage protection: at Uvst <10.5V - alarm, <10V - off
- overvoltage protection: with Uvst> 15.5V - switch-off
- thermal protection - against overheating. Automatic reset after cooling down.
- protection against overload and short circuit at the output
- soft start: 3-5 sec
- LCD display with display of battery voltage [DCV], output voltage [ACV [and instantaneous consumption [W [-data are displayed gradually in a period of about 1s
- safety and EMC: EN62040-2, EN61000-3, IEC61000-4-3, IEC61000-4-6
- insulation resistance: 100 Mohm / 500V, I / P-O / P
- dimensions: 450 × 230 × 105 mm / 7.5 kg
