Wireless microphone SHOW RUD-802R / 1 x U-899H, two-channel set, UHF

Wireless microphone SHOW RUD-802R / 1 x U-899H, set

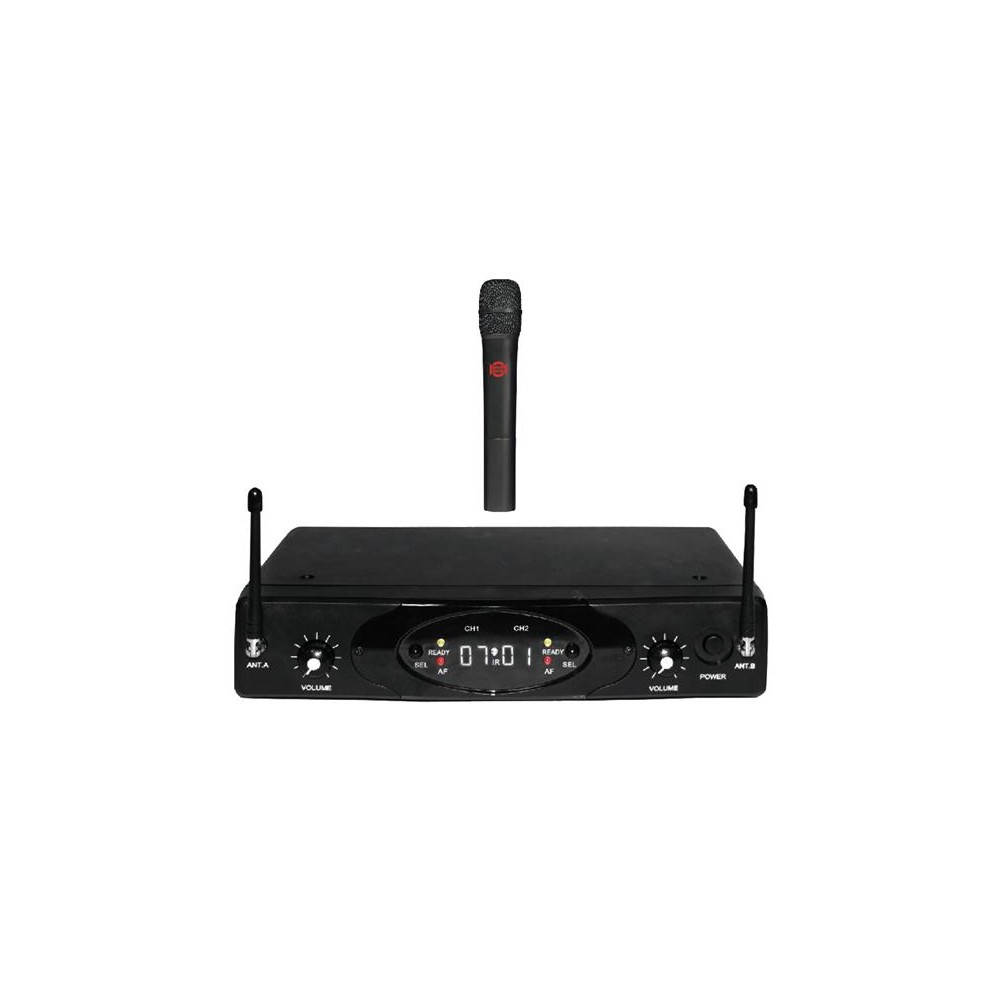

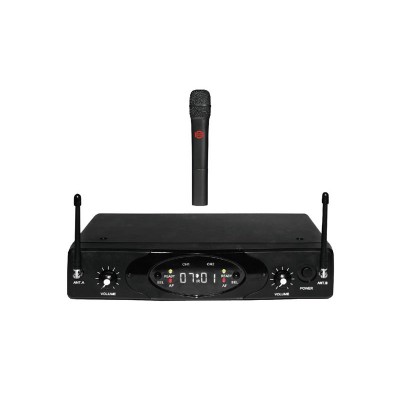

RUD-802 is a modern set of wireless two-channel microphone system in the UHF band, which consists of a RUD-802 receiver unit and one U-899H handheld microphone with a plastic handle with a built-in transmitter. The system is equipped with frequency synthesis technology, where frequency stability is ensured by a phase feedback loop (PLL) system in transmitters and receivers and allows automatic selection of up to 100 frequency presets in the UHF band for both channels. The RUD-802 system, which is easy to set up and control, works with constant acoustic quality over the transmission distance for the lifetime of 6 hours of batteries in the transmitters (2 1.5V, AA per microphone). It is the perfect system for a wide range of applications, singers, conference moderators, live events or AV presentations, where two microphones with manual control without interference can be used simultaneously. If a new transmitter needs to be assigned to the receiver, this is facilitated by the auto-scan feature to identify free frequency carriers. The system of synchronizing the receiver with any new transmitter is facilitated by automatic synchronization using infrared radiation without any manual adjustment. The receiver is equipped with an LCD screen showing the preset number, frequency value, transmitter battery life and the quality of RF and AF signals. If necessary, it is possible to replace (supplement) the handheld microphones with U-899P pocket transmitters with LM-60(4B) lapel microphones or with HM-38(4B) headset microphones . There are two independent XLR balanced outputs corresponding to each nf channel plus a line unbalanced output where both audio channels are mixed.


Product parameters:

- two-channel wireless microphone system
- RUD-802 receiver unit and one U-899H handheld microphon
- automated selection of transmission frequencies in the UHF band
- transmission of acoustic band 50Hz to 15kHz
- suitable for moderating live events and singing
- easy commissioning, thanks to automatic synchronization


Technical parameters :

RUD-802 receiver unit

- receiver type: two-channel wireless receiver with frequency synthesis with PLL UHF
- RF frequency band: reserved frequencies in the UHF band for the USA / Europe
- nf transmission band: 50 Hz - 15 kHz (± 3dB)
- RF frequency stability: ± 0.005%
- THD distortion: <1%
- dynamic range: >100 dB
- modulation mode: FM (F3E)
- max. unbalanced output: 10dBu
- max. balanced output: 10dBu
- signal-to-noise ratio (S / N): >dB100
- RF sensitivity: -100 dBm / 30 dB SINAD
- power supply: 100-240V / 50 ~ 60Hz, DC 15V / 600mA
- parameter display: LCD display
- dimensions: (W x D x H) 220 x 130 x 125 mm
- weight: 0.45 kg


Handheld microphone with U-899H transmitter

- frequency band: UHF
- RF frequency stabilization: PLL UHF synthesis
- frequency stability: ± 0.005%
- modulation mode: FM (F3E)
- radiated RF power Fcc: 10 mW
- interference emission: 50 dBm
- THD distortion: <1%
- nf transmission band: 50 Hz - 15 kHz (+/- 3dB)
- current consumption: <150 mA
- power supply: battery type "AA" x 2 pcs (6 hours of use)
- operating temperature: -10°C to 50°C
- frequency stroke: 35 kHz
- dimensions (length x diameter): 240 x 50 mm
- weight: 0.27 kg
- dynamic range: >100 dB
- microphone type: dynamic capsule


Package contents :

- receiving unit RUD-802: 1pc
- handheld microphone with transmitter U-899H: 1pcs
- Czech, Slovak and English instructions for use

Manufacturer: SEIKAKU Group - SHOW
http://www.seikaku.hk/



Optional addition of a pocket transmitter U-899P

- frequency band: UHF
- frequency stabilization: PLL UHF synthesis
- frequency stability: ± 0.005%
- modulation mode: FM (F3E)
- radiated RF power Fcc: 10 mW
- interference emission: 50 dBm
- THD distortion: <1%
- nf transmission band: 50 Hz - 15 kHz (+/- 3dB)
- current consumption: <150 mA
- power supply: battery type "AA" x 2 pcs (6 hours of use)
- operating temperature: -10°C to 50°C
- frequency stroke: 35 kHz
- dimensions (W x D x H): 65 x 85 x 25 mm
- weight: 0.82 kg
- dynamic range: >100 dB
- microphone / instrument input: 10 dBu
- microphone type: dynamic or condenser
- signal source connection: mini XLR balanced 4-pin connector,
- connection of mini XLR connector: Pin 1: GND, Pin 2: Phantom power of the microphone, Pin 3: Instrument, Pin 4: Microphone


Optional addition of a microphone on the lapel LM-10 (4B)

- microphone type: condenser
- nf transmission band: 50 Hz - 12 kHz (± 3dB)
- sensitivity: -65dB (±3 dB at 1kHz)
- output impedance: 680 Ω
- output connector type: mini XLR 4 (4B)
- dimensions: ø12 x 180 mm
- weight: 22g


Optional addition of a microphone on the lapel LM-60 (4B)

- microphone type: condenser
- nf transmission band: 50 Hz - 16 kHz (± 3dB)
- sensitivity: -65dB (± 3dB at 1kHz)
- output impedance: 680 Ω
- output connector type: mini XLR 4 (4B)
- dimensions: ø12 x 180 mm
- weight: 22g
