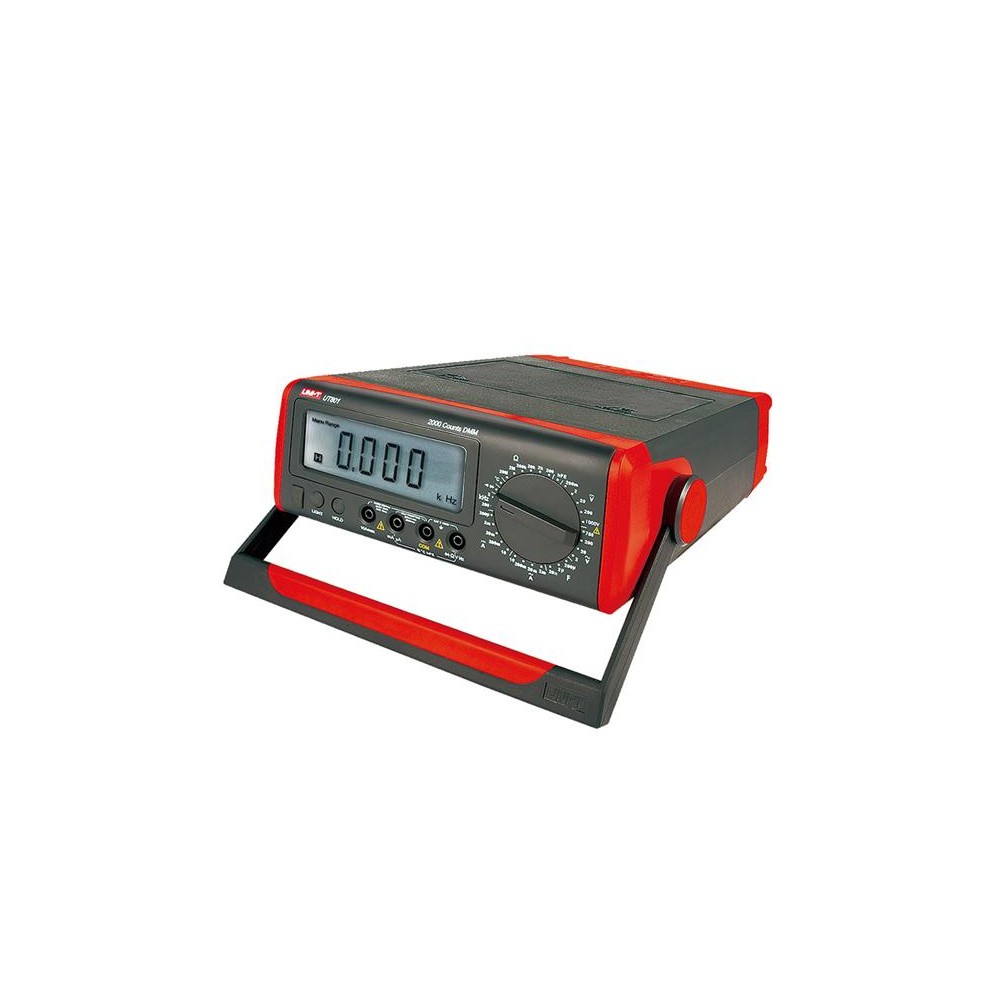

Benchtop Digital Multimeter UNI-T UT801

Benchtop Digital Multimeter UNI-T UT801
SPECIFICATION:
DC Voltage: 200mV/2V/20V/200V/1000V +/- (0.5%+2)
AC Voltage: 2V/20V/200V/1000V +/- (0.8%+3)
DC Current: 200uA/2mA/20mA/200mA/10A +/- (0.8%+2)
AC Current: 2mA/20mA/200mA/10A +/- (1.0%+3)
Resistance: 200 Ohm/2kOhm/20kOhm/200kOhm/2MOhm/20MOhm +/- (0.8%+3)
Capacitance: 20nF/2uF/200uF +/- (4%+3)
Frequency: 2kHz/200kHz +/- (1.5%+5)
Temperature: -40°C ~ 1000°C +/- (1.2%+3)

SPECIAL FUNCTIONS:
Transistor
Sleep Mode
Diode
Continuity Buzzer
Display Backlight
REL
Max/Min Mode
Low Battery Display
Input Impedance for DC Voltage Measurement: >10MW
Data Hold
Max. Display: 1999

GENERAL CHARACTERISTICS:
Power: AC220V/50Hz or 1.5V Battery x 6 (R14)
LCD Size: 108 x 35mm
Product Colour: Red and Grey
Product Net Weight: 1500g
Product Size 300 x 245 x 105mm
Standard Accessories: Test Lead, AC220V Power Cord,English Manual, Point Contact, Temperature Probe, Multi-Purpose Socket
