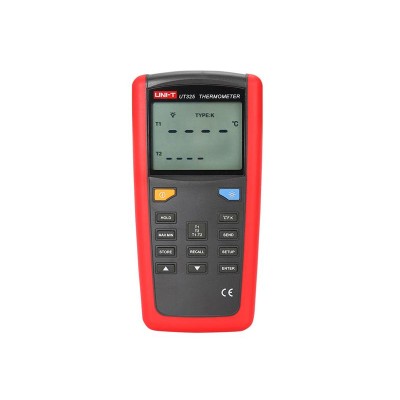

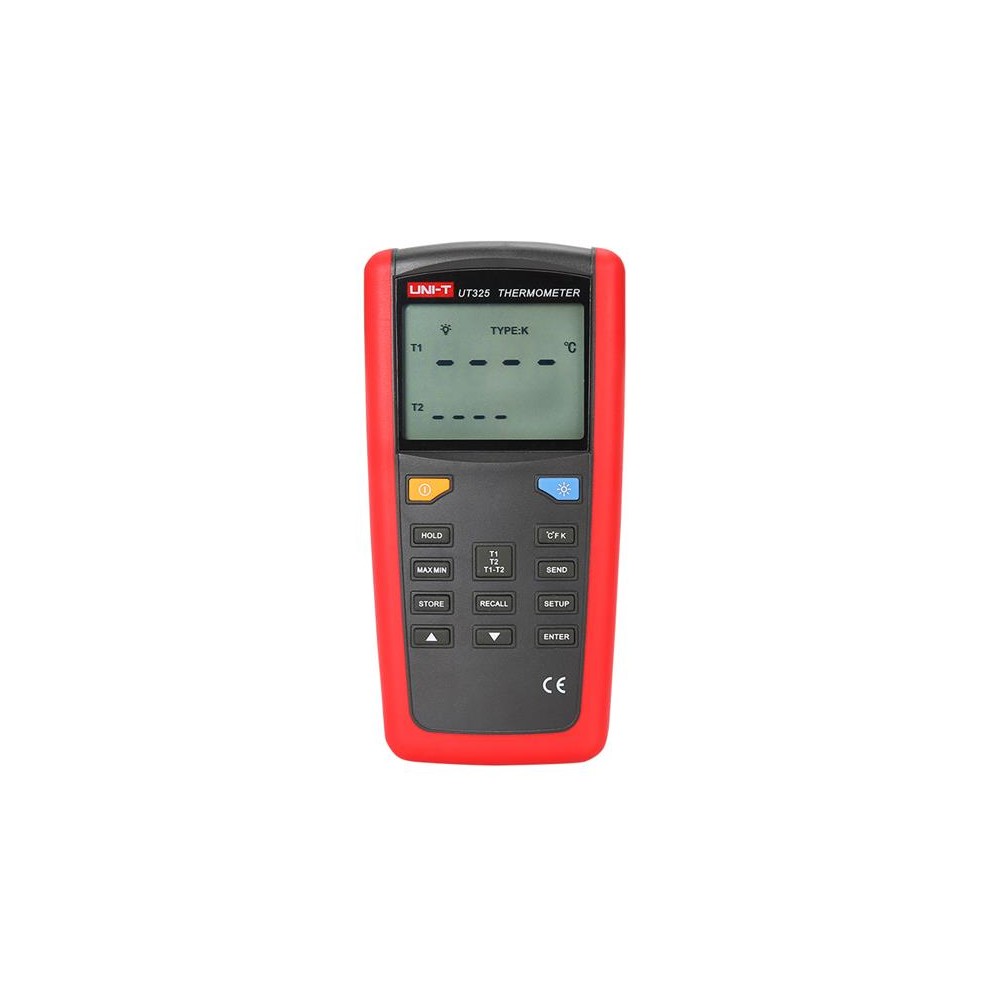

Digital thermometer UNI-T UT325

Digital thermometer UNI-T UT325
The UT325 device manufactured by UNI-T is a precision digital thermometer with two inputs for thermocouples with contact temperature measurement. The device allows you to select three different temperature measurement units: ° C / ° F / K. A K-type thermocouple probe up to + 260 ° C is supplied as standard with the instrument, but it is possible to purchase probes for measuring temperatures up to 1767 ° C, eg UNI-T T03 to T07. Up to 100 sets of measurements can be stored in the device's memory and later transferred via USB to a computer for further processing - data analysis using PC software. The device is powered by a 9V battery (6F22) or via USB from a computer.


Product parameters :

- high accuracy and the possibility of connecting to a PC at a great price
- 2 4-digit LCD displays
- temperature reading resolution: 0.1 ° C; in the range ＞ 999.9 ° C then 1 ° C
- possibility to connect thermocouples of types: K, J, T, E, R, S, N
- selection of units of measurement: ° C / ° F / K
- data storage: yes, for 100 sets of measurements
- data transfer to PC: yes, via USB interface
- low and high temperature alarm: yes
- automatic calibration: yes


Technical parameters :

Temperature ranges // accuracy:
- thermocouple type K: -200.0 ° C to + 1372 ° C // ± (0.2% + 0.6)
- thermocouple type J: -210.0 ° C to + 1200 ° C // ± (0.2% + 0.6)
- T-type thermocouple: -250.0 ° C to + 400.0 ° C // ± (0.2% + 0.6)
- thermocouple type E: -150.0 ° C to + 1000 ° C // ± (0.2% + 0.6)
- thermocouple type R: 0,0 ° C to + 1767 ° C // ± (0,2% + 2)
- thermocouple type S: 0 ° C to + 1767 ° C // ± (0,2% + 2)
- thermocouple type N: -200 ° C to + 1300 ° C // ± (0.2% + 1.5)

- LCD display dimensions: 30 x 32 mm, 2 four-digit data
- temperature reading resolution: 0.1 ° C; in the range ＞ 999.9 ° C then 1 ° C
- selection of units of measurement: ° C / ° F / K
- automatic calibration: yes
- two inputs for probes: yes
- MAX / MIN / AVG mode: yes
- high and low alarm: yes
- data storage: yes, 100 sets
- data transfer to PC: yes, USB interface
- automatic backlight: yes, when working with connected USB
- automatic calibration: yes
- automatic shutdown: yes
- low battery indication: yes
- power supply: USB or 9V battery (6F22)


General characteristics :

- product color: red and gray
- net weight of the product: 270 g
- product dimensions: 175 x 85 x 30 mm

Contents of individual packaging :

- device UT325: 1pc
- temperature probe type K: 1pc
- battery 9V (6F22): 1pc
- USB interface cable: 1pc
- CD with software for PC: 1pc


Contents of wholesale package :

- standard quantity per carton: 10pcs
- dimensions of the standard carton: 405 x 290 x 165 mm
- weight of standard carton: 4.3 kg

Manufacturer: UNI-TREND
